MEMS sensor sample kit

STEVAL-MKIT01V1

Overview

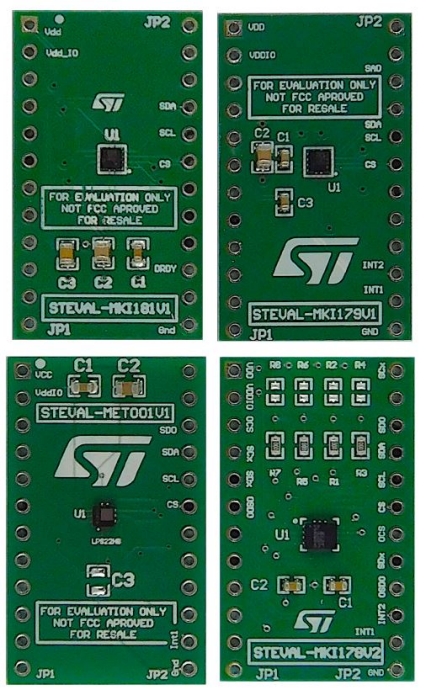

The STEVAL-MKIT01V1 is a MEMS sensor sample kit containing four sensor adapter boards that can be evaluated in standalone mode by simply connecting an I²C cable.

The STEVAL-MKI109V3 evaluation board, based on the STM32F401VET6 microcontroller, can be used for a more in-depth evaluation, as a bridge between the sensor adapter boards and a PC running STMicroelectronics graphical user interface (GUI) or an X-NUCLEO expansion board.

Main features

STEVAL-MKI179V1 adapter board for LIS2DW12:
- 3-axis MEMS accelerometer, ultra low power, configurable single/double-tap recognition, free-fall, wakeup, portrait/landscape, 6D/4D orientation detection
STEVAL-MKI178V2 adapter board for LSM6DSL:
- iNEMO inertial module, 3-axis accelerometer, 3-axis gyroscope, always-on, smart FIFO buffer, free-fall, wakeup, 6D/4D orientation, I2C, SPI
STEVAL-MKI181V1 adapter board for LIS2MDL:
- digital 3-axis magnetometer
STEVAL-MET001V1 adapter board for LPS22HB:
- Magnetic sensor, digital output, 50 gauss magnetic field dynamic range, ultra-low power high performance 3-axis magnetometer

Design Files

MEMS sensor sample kit
