50W wide range high power factor flyback converter using L6564

STEVAL-ISA142V1

Overview

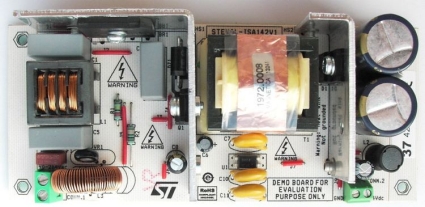

The STEVAL-ISA142V1 product evaluation board implements a 50 W, wide-range mains input, power factor-corrected power supply suitable for all low power applications requiring a high power factor, such as lighting applications and LED power supplies. Use of the low-cost L6564 combined with simple flyback topology provide a very competitive solution.

Main features

Line voltage range: 90 to 265 VAC
Minimum line frequency (fl): 47-63 Hz
Minimum switching frequency: 44 KHz
Reflected voltage: 140 V
Regulated output voltage: 24 V
Rated output power: 50 W
Power factor (load ≥ 50%): 0.9 minimum

Minimum efficiency at full load: 88%
Maximum 2 fl output voltage ripple: 1.1 V pk-pk (V_IN=230 V_AC, P_out=50 W)
Maximum ambient temperature: 50 °C
Conducted EMI: in accordance with EN55022 class-B
PCB type and size: single-sided, 35 um, CEM-1, 140 x 60 mm
RoHS compliant
