LTE Cellular to cloud package using STM32L496AG MCU

P-L496G-CELL02

Overview

The P-L496G-CELL02 STM32 discovery pack for LTE IoT cellular to cloud (STM32-C2C/LTE IoT) is a turnkey development platform for cellular and cloud technology based solutions.

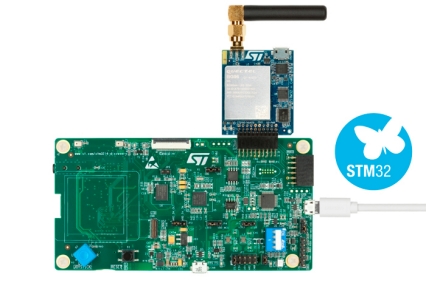

The pack is composed of an STM32L496AGI6-based low-power discovery mother board with preloaded firmware, and an STMod+ cellular expansion board with antenna.

Main features

STM32L496AGI6 microcontroller featuring 1 Mbyte of Flash memory and 320 Kbytes of RAM in a UFBGA169 package
USB OTG HS
On-board current measurement
SAI Audio CODEC
ST-MEMS digital microphones
8-Mbit PSRAM
2 user LEDs
1 user and 1 reset push-buttons

4-direction joystick with selection button
Board connectors:
- Camera 8 bit
- USB with Micro-AB
- Stereo headset jack including analog microphone input
- microSD™ card
Board expansion connectors:
- Arduino™ Uno V3
- STMod+
Board expansion features:
- Quectel BG96 worldwide cellular modem LTE Cat M1/Cat NB1/EGPRS module 300 kbps downlink, 375 kbps uplink
- Modem reset red LED and modem signaling green LED
- ST Incard™ eSIM based on ST33
- Switchable SIM interface, eSIM and MicroSIM
- Pulse SMA antenna for frequency ranges: 824 / 900 / 1800 / 1900 / 2100 MHz
Flexible power-supply options: ST-LINK, USB V_BUS, or external sources
On-board ST-LINK/V2-1 SWD,TAG debugger/programmer with USB re- enumeration capability: mass storage, virtual COM port and debug port
Comprehensive free software libraries and examples available with the STM32Cube package
Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^®, GCC-based IDEs
