elleny

15V, 0.15A buck converter with built-in VIPer0P offline high voltage converter

STEVAL-ISA179V1

Overview

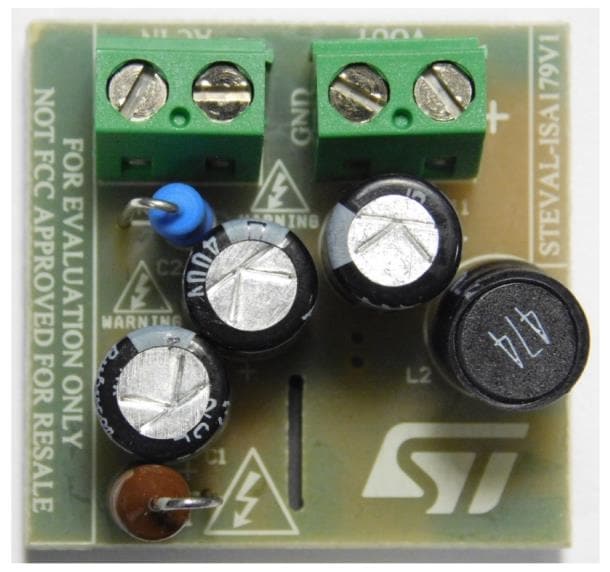

The STEVAL-ISA179V1 evaluation board implements a wide mains range buck converter (15 V / 0.15 A), developed for general purpose applications.

The core of the application is the new VIPer0P off-line high voltage converter of the VIPerPlus family, featuring the Zero Power characteristic.
The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control.
The evaluation board features a single layer design, small size, minimal BOM, high efficiency and low standby consumption.

Main features

Universal AC main input voltage range: 85 V_AC to 265 V_AC
Output range: 15 V / 0.15 A
Rated output power: 2.25 W
Input power in standby @230 V_AC: less than 40 mW
Active mode efficiency: greater than 77%
EMI: EN55022-Class-B compliant
RoHS compliant
