USB Type-C™ and USB Power Delivery evaluation kit based on automotive-grade SPC58 MCU and AutoDevKit development program

AEKD-USBTYPEC1

Overview

The AEKD-USBTYPEC1 evaluation kit is designed to let you test the USB Power Delivery protocol stack implemented on the ASIL-B automotive grade 32-bit Power Architecture^® microcontroller SPC58 C (Chorus) line (from 1 to 10 MB flash, single or multi-core, including ISO CAN FD and Ethernet peripherals).

Main features

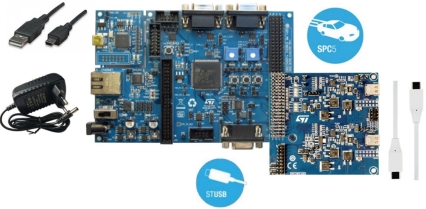

Kit consisting of two boards:
- Dual-port USB Type-C function board (AEK-USB-2TYPEC1)
- SPC58 Chorus discovery board (SPC58EC-DISP)
USB Power Delivery software stack pre-loaded on SPC58 discovery board
Power board connector on USB function board
Power Data Objects (PDO)
- 5 V 500 mA available without external power board
- other PDOs possible if a compatible power board (not included) is connected
Downloadable (STSW-USB2TYPEC1) compiled flash image firmware
Portion of connector on SPC58 Chorus discovery board available for extensions as part of the AutoDevKit development initiative
All key ST components are qualified automotive grade
RoHS compliant
