High-precision body temperature measurement flexible PCB patch reference design supporting Bluetooth technology

TIDA-01624

Overview

This reference design demonstrates highly-accurate sensing of skin-temperature using the TMP117 high precision digital temperature sensor with CC2640R2F wireless MCU. This users guide provides design guidance for skin temperature measurement in medical and wearable applications along with an evaluation software and smart device application.

characteristic

● High accuracy (±0.1ºC) temperature measurement around human body temperature
● 2.4 - GHz RF transceiver compatible with bluetooth low energy (BLE) 4.2 and 5 specifications

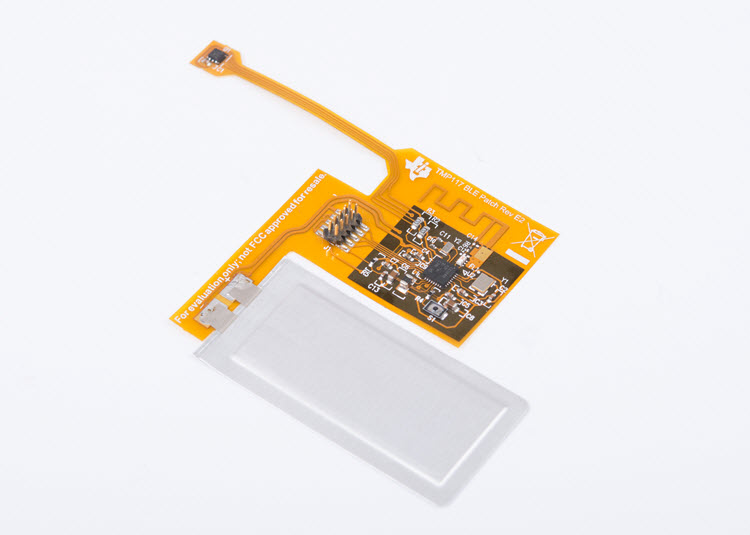

● Flexible PCB design with integrated PCB antenna
● Up to 3 years of shelf-life along with 5 days of active time
● iOS App for device monitoring

Backlog Impt notice changes Backlog Impt notice changes end

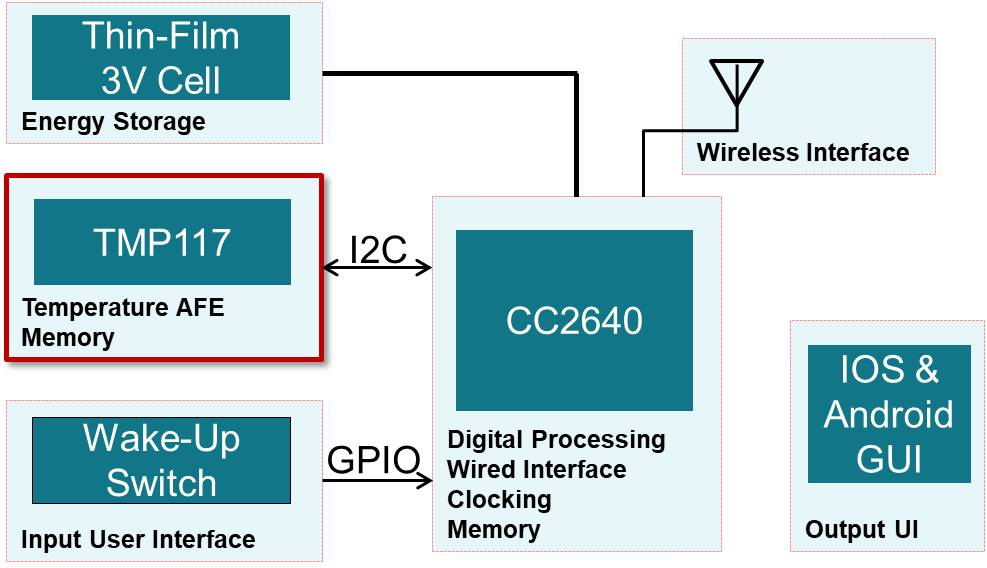

Blockdiagram
