Battery-Powered Wireless Sensor Monitoring Reference Design

TIDM-WIRELESS-SENSORNODE

Overview

This design pairs the ultra-low-power MSP430 MCU with a sub-1GHz RF transceiver to achieve a battery-powered wireless sensor monitoring solution. This design demonstrates access points and wireless nodes that can share sensor data wirelessly using the network protocol "SimpliciTI". A PC-side GUI is also provided to visually display wireless data transmitted/received between various nodes and access points.

characteristic

● Low-power battery-powered wireless sensor monitor
● Using MSP430F2274 MCU and CC2500 2.4 GHz RF transceiver
● Utilizes SimpliciTI radio frequency network protocol to support point-to-point and star topologies.

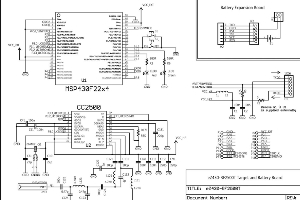

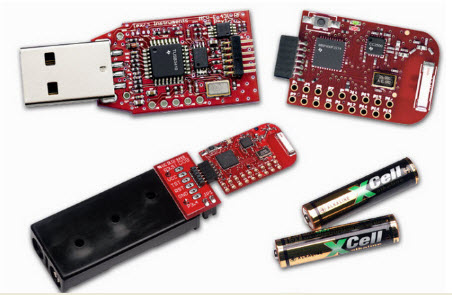

● Hardware for this design is also provided (ez430-RF2500)
● Provides complete hardware design files, software source code and PC GUI
● This design can also be used in battery-less applications using energy harvesting power (ez430-RF2500-seh)

Backlog Impt notice changes Backlog Impt notice changes end

Blockdiagram

Design Files

Documentation

Wireless Sensor Monitor Using the eZ430-RF2500
