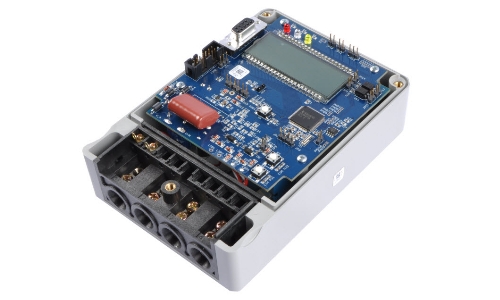

Single-phase electronic electricity meter for single-chip measurements

TIDM-SINGLEPHASEMETER

Overview

This design uses the MSP430F6736 device to implement a highly integrated single-chip energy metering (meter) solution. Hardware and software design files are provided to calculate various parameters of single-phase energy metering such as RMS current and voltage, active and reactive power and charge, power factor and frequency.

characteristic

● Implementation of low-power single-phase electronic metering
● Calculate parameters such as RMS current and voltage, active and reactive power and electricity, power factor and frequency.
● Highly integrated MSP430F67xx series based on metering-focused MCU SoC
● Segmented LCD is also used in this design.
● RF modules can also be added to this design for unique connectivity solutions.

Backlog Impt notice changes Backlog Impt notice changes end

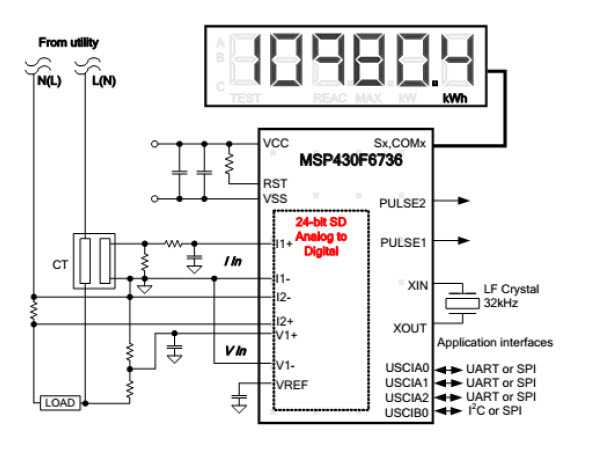

Blockdiagram
