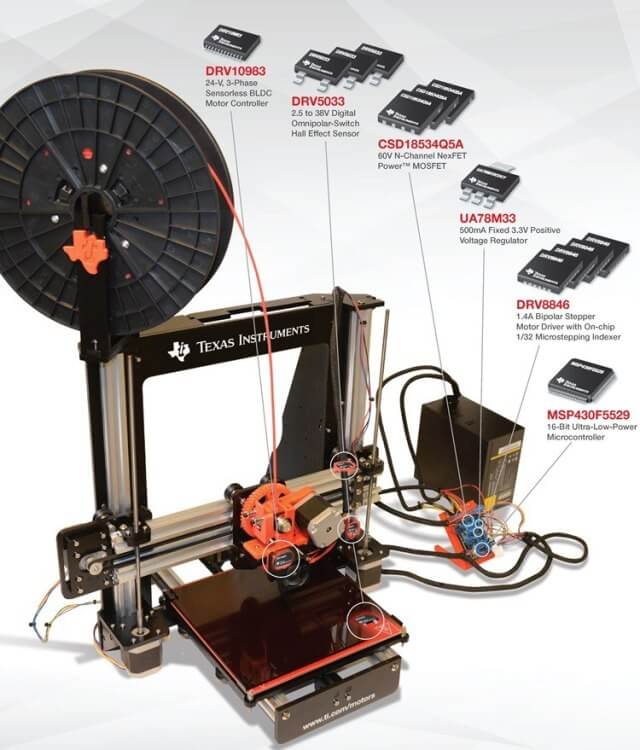

This design is a complete system for controlling a single extruder based 3-axis 3D printer. The system is managed by the MSP430F5529 LaunchPad and utilizes the DRV8846 for precision stepper motor control. The CSD18534Q5A is used as a low-side switch for warm bed heaters, extruder heaters, and cooling fans. The DRV5033 Hall sensor acts as a non-contact limit switch.
Blockdiagram
