PRU Real-Time I/O Evaluation Reference Design

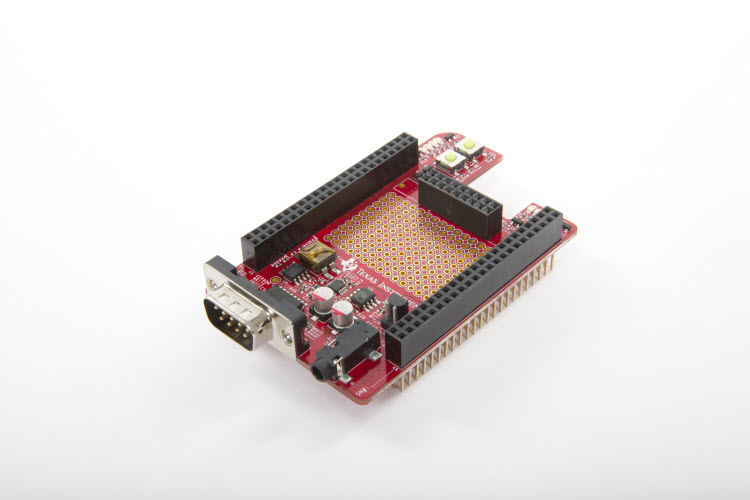

This reference design is a BeagleBone Black add-on board that allows users to explore TI's powerful Programmable Real-Time Unit (PRU) core and basic functionality. The PRU is a low-latency microcontroller subsystem integrated into Sitara's AM335x and AM437x family of devices. The PRU core is optimized for deterministic real-time processing, with direct access to I/O and ultra-low latency requirements. Featuring LEDs and buttons for GPIO, audio, temperature sensors, optional character display, and more, this add-on board provides schematics, bill of materials (BOM), design files, and design guides to allow designers to learn the basics of the PRU.

characteristic

• ● PRU low-latency microcontroller subsystem integrated in Sitara Cortex-A8-based AM335x processor
• ● 32-bit RISC architecture, 200 MHz (5 ns) per instruction, single-cycle execution, dedicated instruction and data RAM, additional shared RAM, 200 MHz (5 ns) I/O interface
• ● BeagleBone Black compatible add-on circuit board includes buttons, I/O headers, basic audio, UART (DB9), HDQ temperature sensor, prototyping area, optional 8x2 LCD character display
• ● Full set of reference materials including schematics, BOM, board design files and design guides
