LPC54S018M-EVK: LPCXpresso54S018M development board

Overview

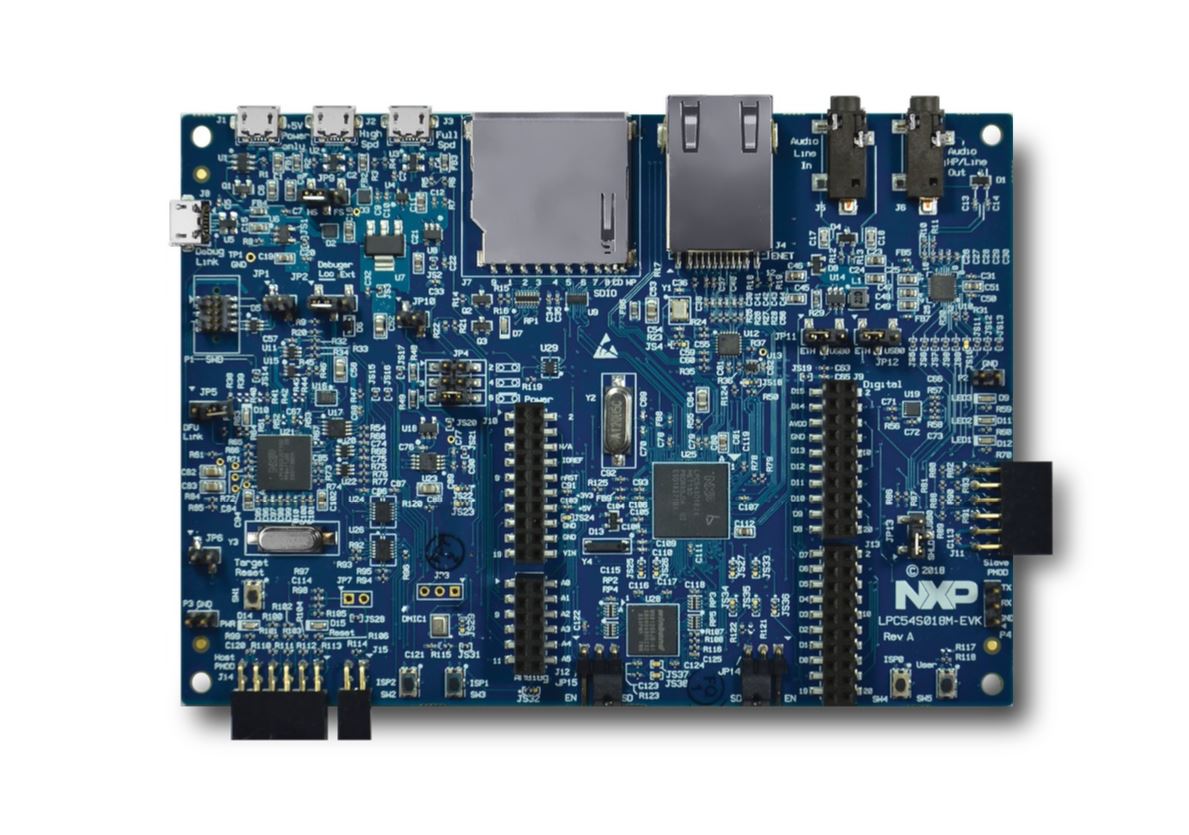

The LPC54S018M-EVK development board is designed for evaluation and prototyping with the LPC540xxJxM/LPC54S0xxJxM MCU devices, which leverage the high-performance Arm® ^Cortex® - ^M4 core and provide the advanced security features found in the LPC54S0xx MCU family. The board consists of the LPC540xxJxM/LPC54S0xxJxM target device and an onboard CMSIS-DAP/SEGGER® ^J -Link compatible hardware debugger.

The on-board hardware debugger is compatible with MCUXpresso IDE and other leading tool chains such as Keil ^™ and IAR® ^. The development board also comes with a standard 10-pin header for use with third-party hardware debuggers. In addition to standard LPCXpresso V3 functionality, the board includes a complete set of peripheral interfaces, allowing developers to fully understand the capabilities of the LPC540xxJxM/LPC54S0xxJxM devices.

MCUXpresso configuration tools and extended SDK drivers/usage examples, including examples of security features supported in LPC54S0xx MCU devices, are available for boards listed at mcuxpresso.nxp.com.

MoreCollapse

Design Files

Printed circuit board and circuit diagram:LPCXpresso54S018M assembly, BOM and schematics,
