This reference design focuses on high-side current measurements using TI's range of voltage output current shunt monitors. This design can be used to measure high-side current in industrial applications where common-mode dynamics can drop below ground. Overall, this design helps designers build electromagnetic compatibility (EMC) compliant circuits based on current shunt monitor devices while achieving a highly accurate current monitoring solution in the presence of a wide range of common-mode voltages from -14V to +80V.

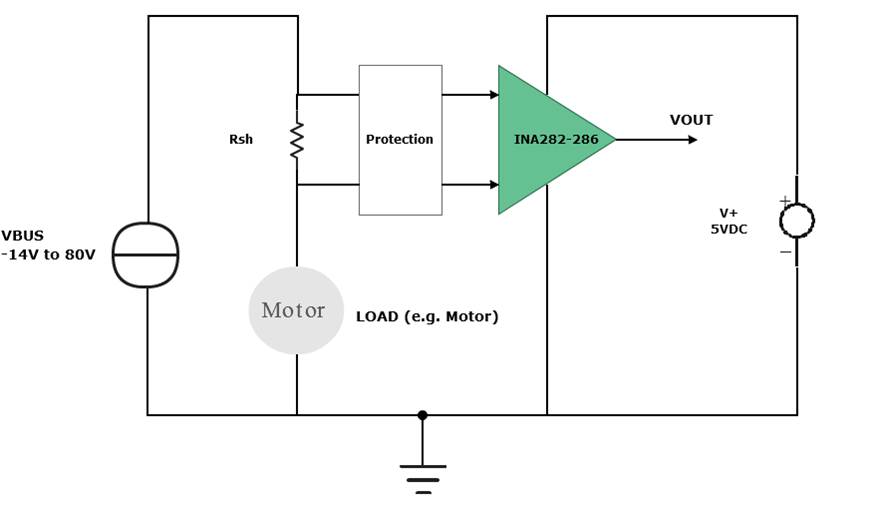

Blockdiagram
