sigma

700W Automotive External Audio Amplifier Reference Design

PMP11769

Overview

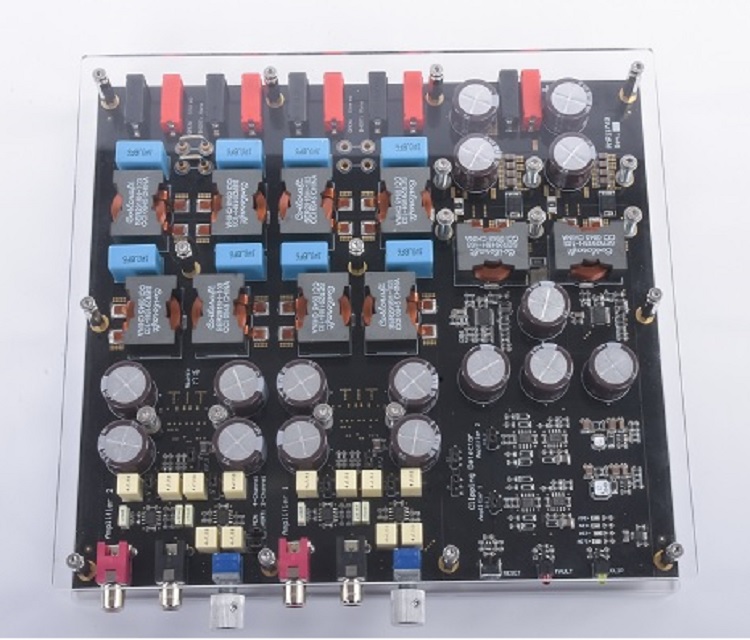

The PMP11769 reference design is a comprehensive solution for 700W automotive audio amplifiers. This boost converter provides a 36.0V, 10.0A continuous/20.0A peak output from an input voltage of 9 to 16V. It contains two Class D amplifiers delivering 2 x 175W (loaded into 4 ohms, left and right channels) and 1 x 350W (loaded into 2 ohms, subwoofer) power.

characteristic

● Easily integrated into automotive systems thanks to 50V load dump and integrated protection system
● Ultra-HD audio, providing the best quality sound for any integrated Class D amplifier
● 100kHz bandwidth, supports high-resolution audio files and formats
● Low noise, eliminating “hiss” or “buzz” sounds

Backlog Impt notice changes Backlog Impt notice changes end

Design Files

Documentation

PMP11769 Test Results
