Tiny 2A Power Supply with LMZ20502 Nano Module - Reference Design

PMP10595

Overview

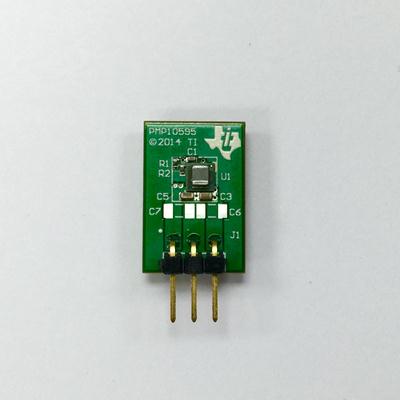

The PMP10595 reference design is a miniature 1.8V 2A output power supply using the SIMPLE SWITCHER® LMZ20502 micro module. This reference design leverages the LMZ20502's tiny package and high level of integration to achieve a small solution size of approximately 5mm x 6mm (30 mm2). This design has an input voltage range of 2.7V to 5.5V and provides an output of up to 2A. On the reference board, the LMZ20502 is set to automatic mode to achieve high efficiency at light load and full load.

characteristic

● LMZ20502 micro module with integrated inductor
● 2.7V to 5.5V input, 1.8V 2A output power supply
● Small size solution of 30mm2
● Working quiescent current below 100uA
● LMZ20502 has high light load efficiency in automatic mode
● This circuit board has been tested and includes design files and test reports.

Backlog Impt notice changes Backlog Impt notice changes end

Design Files

Documentation

PMP10595 Test Results
