USB Type-C™ and Power Delivery MicroDock Reference Design for Video and Charging

TIDA-01243

Overview

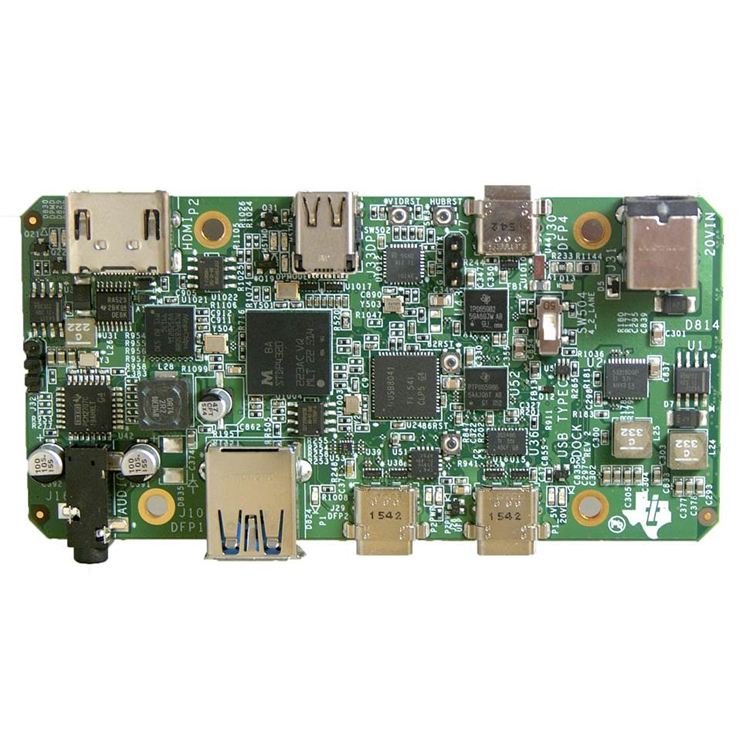

The USB Type-C™ and Power Delivery (PD) MicroDock Evaluation Module (EVM) provides a complete USB Type-C dock reference solution including audio, USB data, power delivery and video. The EVM has a small 2-inch × 4-inch form factor and supports both sourcing and sinking power capabilities through the USB Type-C PD host port. Video output capabilities include DisplayPort and HDMI.

characteristic

● DisplayPort™ to HDMI
● Bidirectional power supply function
● DRP full-featured USB-C and PD ports
● Two-way video (up to 4K) via HDMI or Micro DP
● Flash update via Type-C
