OM13099: CAN-FD dual transceiver Shield expansion board

Overview

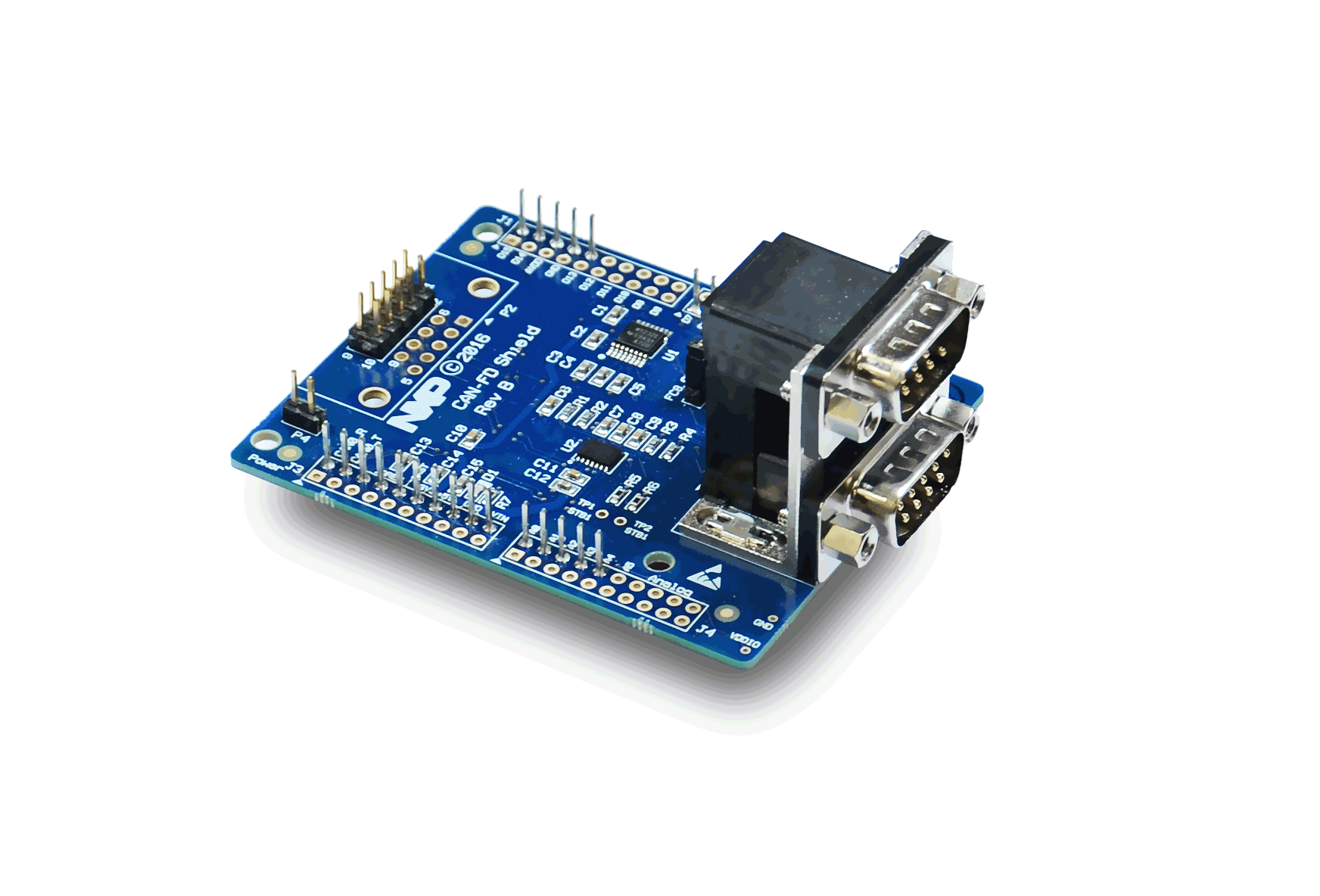

The OM13099 CAN-FD Shield expansion board provides CAN/CAN-FD dual transceivers for use with CAN-enabled LPCXpresso V3 circuit boards. This board features the NXP TJA1059 dual transceiver as well as the RS232C transceiver. This Shield expansion board is compatible with all LPCXpresso546xx circuit boards (but LPCXpresso54608 only supports classic CAN, not CAN-FD).

The user manual for the LPCXpresso546xx series describes the configuration and operation of the OM13099.

MoreCollapse

Design Files

Printed circuit board and circuit diagram:CAN-FD Shld schematic Rev C
