Application circuit of brushless DC motor pre-driver IC TC78B027FTG for fan drive

Overview

• 6 MOSFETs are used for fan motor drive.
• Brushless DC motor pre-driver IC TC78B027FTG is used for fan motor control.
• Microcontroller TMPM373FWDUG is used for PWM generation and motor rotation control.
• Hall device is mounted on the bottom side of the board.

Features

• The board is designed to a doughnut shape according to the fan form.
• MOSFETs for the motor drive, brushless DC motor pre-driver IC TC78B027FTG, and the microcontroller for control are mounted on a board.
• Compact board size (Diameter 40mm, 4 layer board)

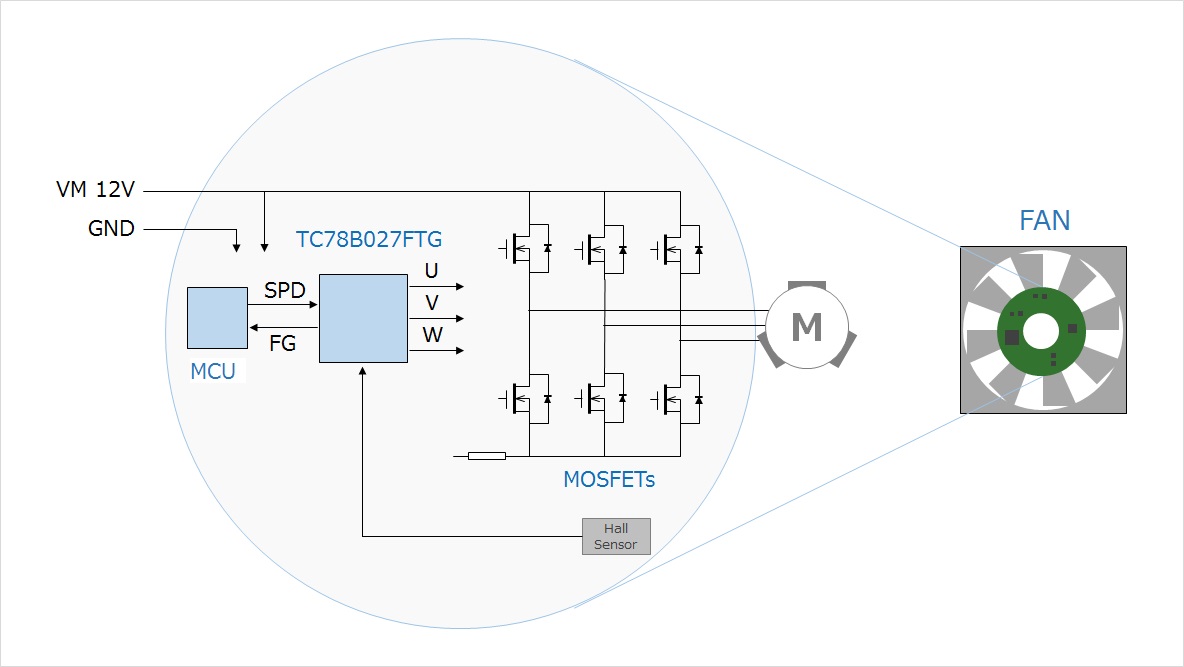

Blockdiagram

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
