TPD4207F small compressor motor drive application circuit

Overview

• Description of brushless DC motor drive control method (sensorless drive and sine wave control)
• Compressor motor drive application circuit example using the combination of TPD4207F and TMPM4K0FSADUG • Peripheral circuit design guide features
such as protection circuit threshold setting • Combination of TPD4207F and TMPM4K0FSADUG passed Vector control enables high-efficiency compressor motor (BLDC) drive • Improved current rating (5A) due to the installation of a low on-resistance (0.44Ω (typ)) MOSFET, making it possible to drive motors requiring high current at startup Compressor Motor • Built-in voltage regulator, current limit and undervoltage protection circuitry to help simplify circuit board design.

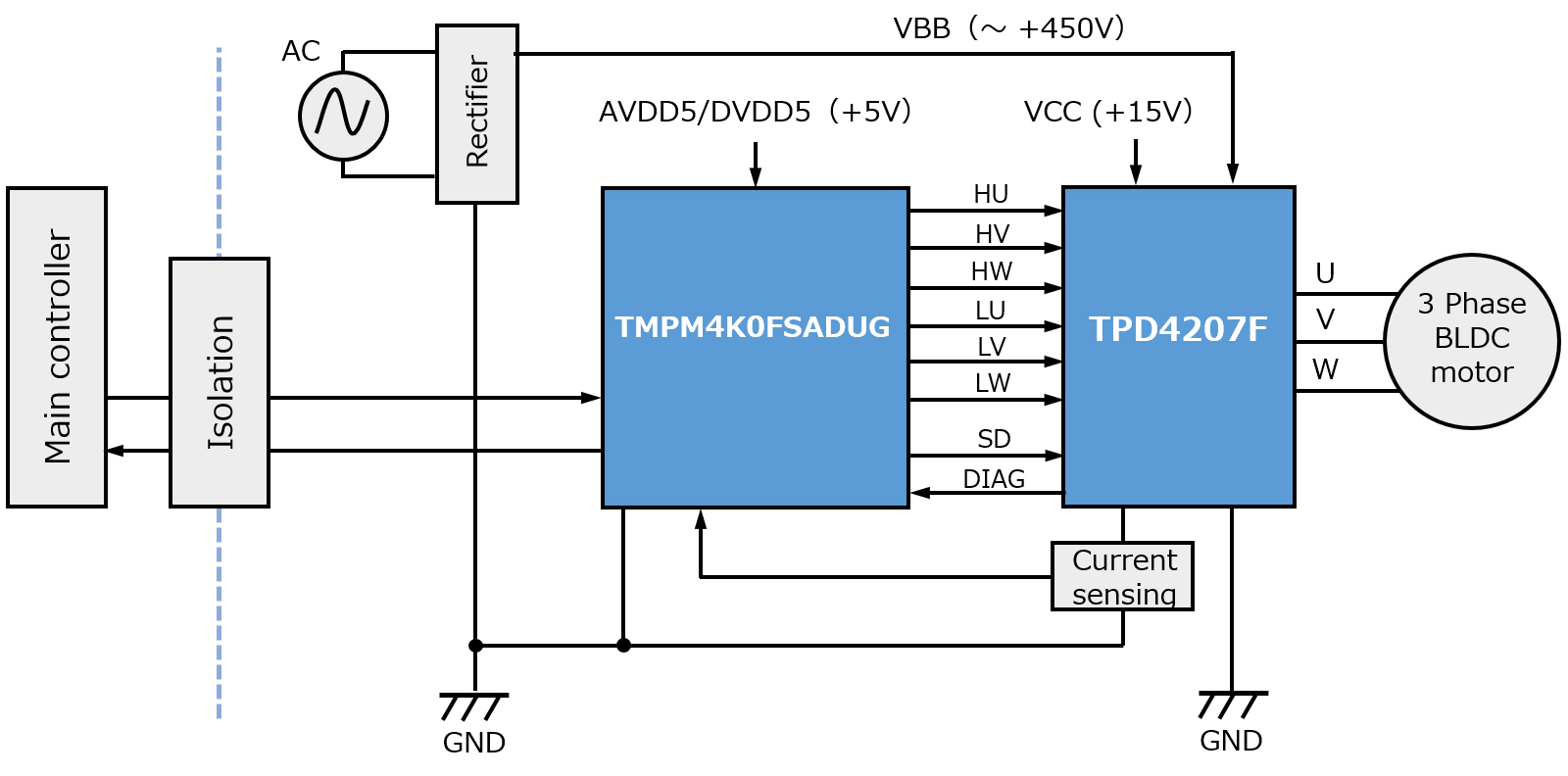

Blockdiagram
