car data recorder

Overview

The automotive data logger consists of NuMicro® NUC131 microcontroller and N9H30 microprocessor. NUC131 supports CAN Bus to log On-Board Diagnostics-II (OBD-II) data, which includes vehicle speed, engine RPM, engine coolant temperature, intake air temperature, MAF air flow rate and throttle position from engine control unit (ECU) simulator. Then NUC131 converts the OBD-II raw data and transmits the above information to N9H30. N9H30 shows the received information on 7” TFT-LCD human machine interface enhanced by emWin.

Features
- Supports ISO 15765-4 CAN
- Extendable other standards

- SAE J1850 PWM/ VPW
- SAE J1939 CAN
- ISO 9141-2
- ISO 14230-4 KWP
- Supports HMI enhanced by emWin

Specifications
NUC131 (32-bit Arm® Cortex®-M0)
- AEC-Q100 qualified
- Supports CAN protocol version 2.0 part A/B and bit rate up to 1 Mbit/s
- Supports up to 6-set UART with LIN and RS485 function
- Supports 24-channel PWM outputs with a max clock frequency of 100 MHz
- Supports high noise immunity: ESD HBM 8 kV and EFT 4.4 kV
- Supports a wide operating voltage from 2.5V to 5.5V

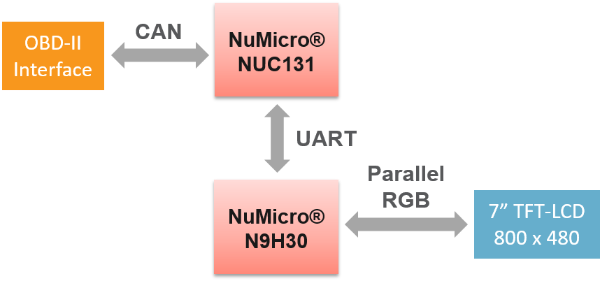

Blockdiagram
