MAXREFDES104#: Health Sensor Platform Version 3.0

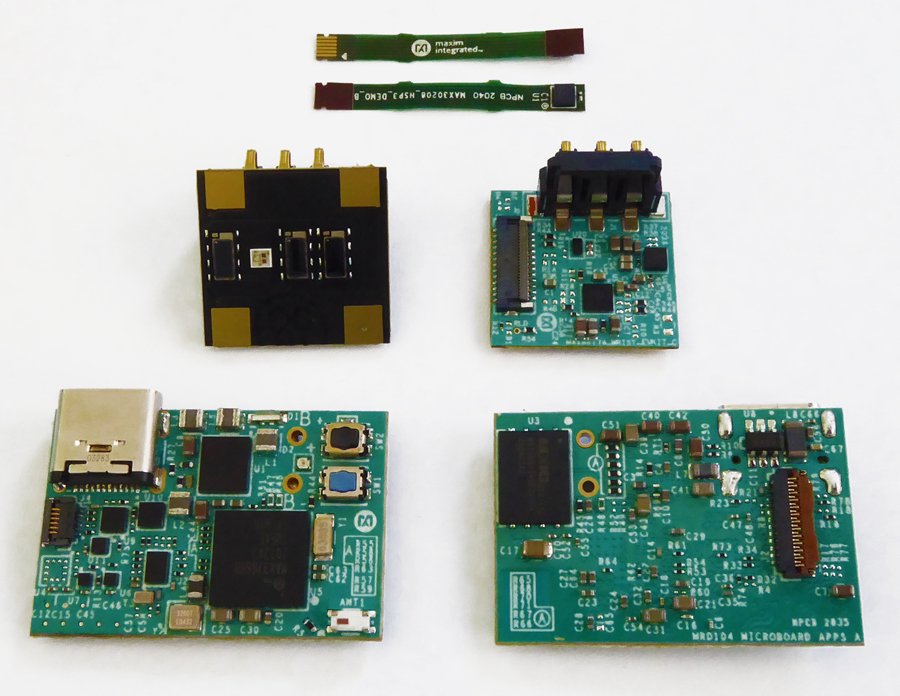

MAXREFDES104# is an evaluation and development platform designed specifically for wearable products and is used to demonstrate various health sign parameter detection solutions launched by Maxim. The third generation health sensor platform MAXREFDES101# health sensor platform version 2.0 upgrade system) integrates PPG + ECG into one analog front end (AFE) sensor MAX86176, body temperature sensor MAX30208, microcontroller MAX32666, power management IC MAX20360 and 3 axes Accelerometer. The complete development platform provides a 3D printed housing and a biometric algorithm concentrator with built-in heart rate, blood oxygen saturation and ECG algorithm MAX32670. Algorithm results can be output via Bluetooth®, or raw data can be transferred to PC GUI to facilitate system demonstration, evaluation and customized development.

Design documents, firmware and software can be downloaded from the Design Resources tab. Users can also order related circuit boards.

Features

Photoplethysmography (PPG) biopotential
measurement (ECG and EEG)
Skin temperature measurement
Embedded heart rate and oxygen saturation algorithms
Motion and rotation monitoring
Fits wearable form factor



Photoplethysmography (PPG) biopotential
measurement (ECG and EEG)
skin temperature measurement
Embedded heart rate and oxygen saturation algorithms
Motion and rotation monitoring
Wearable form factor

kit contents

Fully assembled wearable system
BLE USB converter (CY5677)
USB-A to USB-C Cables
USB-A to Micro-USB cables
Programmable circuit board (MAXDAP-USB-C)

applications

Wrist-worn products
Chest and abdominal wear products, including patches
Remote patient monitoring
Forehead-worn products
