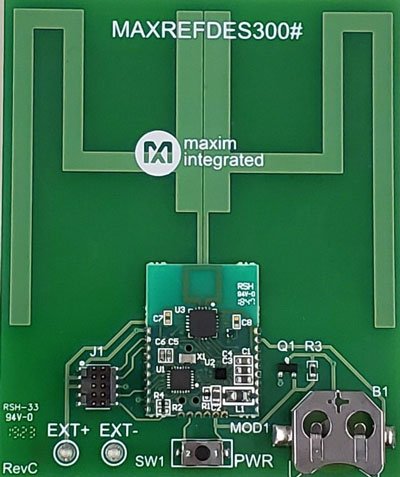

MAXREFDES300#: RFID data logger for healthcare and cold chain logistics

The MAXREFDES300# reference design allows the user to prototype a product to measure and log temperature for the healthcare industry and cold-chain logistics.

The major components on the board are Maxim’s MAX32660 microcontroller, Maxim’s MAX20310 PMIC, and Axzon’s Xerxes™ RFM405 wireless sensor. Combined with the RFM405, the MAX32660 provides an evaluation board to overcome the challenges faced by current dataloggers by wirelessly reading/writing, providing traceability of temperature violation, improving battery life, and reducing cost. The reference design has a standards-compliant UHF interface (EPC Gen2v2) which easily allows a compatible RFID reader to communicate wirelessly.

Refer to the Details tab for more information. Design files including a schematic, PCB files, and bill of materials (BOM) can be downloaded from the Design Resources tab. The board is also available for purchase.
Features

Maxim’s MAX32660 Microcontroller
Ultra-Low-Power Operation
256KB Flash Memory and 96KB SRAM
3.05mm (L) x 3.05mm (W) x 0.80mm (H) TQFN Package
Axzon’s RFM405 Wireless Passive Sensor
On-Chip Temperature Sensor
UHF/RAIN Operation – EPCglobal® Gen2 Compliant
Maxim’s MAX20310 PMIC
Single-Inductor Multiple-Output (SIMO), Ultra-Low-IQ, Buck-Boost Regulator
Programmable-Temperature Thresholds


Applications

Cold-Chain Logistics
Healthcare
