LTE connectivity expansion board for STMod+ connector compatible evaluation boards

STEVAL-STMODLTE

Overview

The STEVAL-STMODLTE expansion board adds LTE connectivity to evaluation boards hosting the STMod+ expansion connector. It embeds an LTE cellular modem and an eSIM with a worldwide coverage.

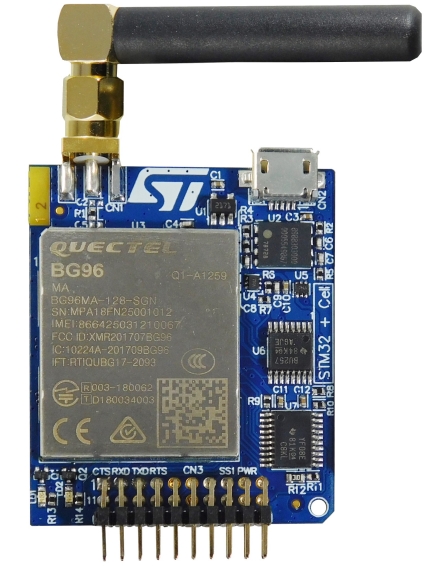

[STEVAL-STMODLTE IMAGE]

The expansion board can be used only with the furnished antenna and is compatible with all STMicroelectronics Discovery kits featuring an STMod+ connector, such as the STM32L496G-DISCO, and with any STMod+ compatible evaluation board.
The package, combined with any compatible evaluation board, represents an ideal development platform for cellular and cloud technology-based solutions.

主要特性

LTE connectivity expansion for evaluation boards hosting the STMod+ connector
Embedded Quectel BG96 FCC and IC certified LTE module (FCC ID: XMR201707BG96 and IC: 10224A-201709BG96)
Modem reset red LED and modem signaling green LED
ST Incard eSIM
Switchable SIM interface, eSIM and MicroSIM
Pulse SMA antenna for the following frequency ranges: 824/900/1800/1900/2100 MHz
Modem firmware can be easily upgraded through the dedicated micro-B USB connector
