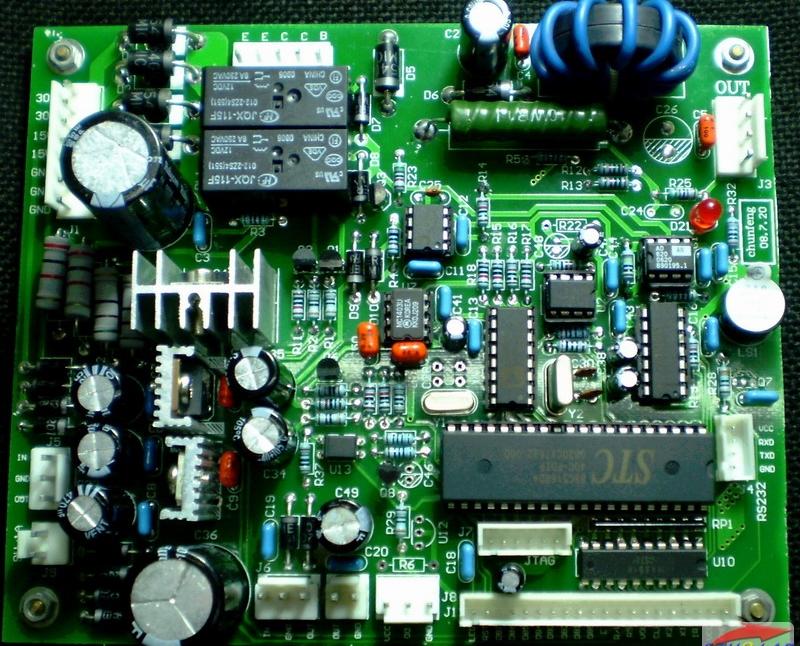

4A CNC regulated power supply design

Overview

Two outputs: 1: 0-30V/4A 2: 5V/1.5A (fixed output)
voltage resolution 0.458mV, current resolution 0.076mA
voltage step 0.0073V, the actual 0.1V step adjustment reset
circuit is Both 51 and AVR are compatible. You cannot solder all four original components. You can solder the reset circuit according to which chip you use.
