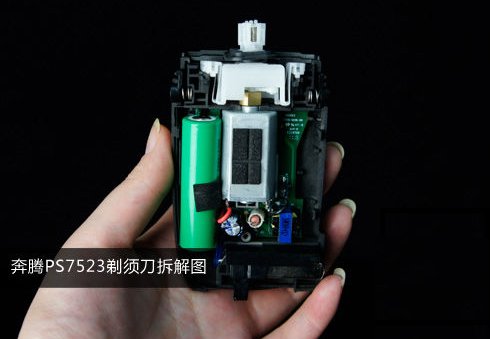

Pentium Shaver Circuit Reference Design

Overview

This solution uses the internal 10-bit 4-channel AD conversion, GPIO port, etc. of the Renesas 8-bit microcontroller 78F9212. Has the following characteristics:

- 1 hour fast constant current charging, trickle after full charge
- Charging protection control to prevent overcharging and battery damage
- Avoid over-discharge, Vb<2V, stop discharging
- Adapter output 3.3V-3.6V, static power consumption <=1mA
- Detect the charging current, adjust to achieve constant current, and detect the discharge current

. The author analyzes the problems that may occur in the hardware circuit, such as: how to deal with excessive static current, how to suppress transient voltage, how to deal with large static current in the discharge circuit, and power supply Reverse protection, etc.
