TEA1755DB1100: TEA1755 90 W / 19.5 V QR / DCM Flyback + PFC Combo Controller Demo Board

Overview

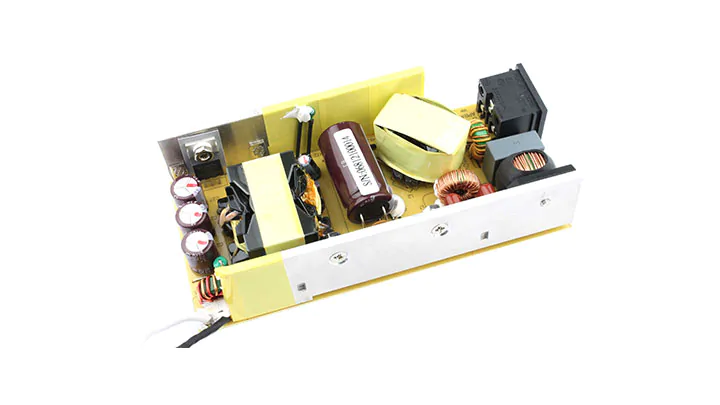

This board demonstrates a 90W laptop adapter reference design with an output voltage of +19.5 V. The reference design combines the TEA1755 GreenChip 3.5 controller with the TEA1792 Synchronous Rectifier and TEA1703 low standby controller to achieve high efficiency and an extreme low no load power level.
