Adapter board for connecting DIL 24 MEMS sensor board to SPC5 MCU discovery board

Connector board for SPC5 MCU discovery boards and MEMS sensor boards in DIL 24 socket

Overview

The AEK-CON-SENSOR1 connector board is designed to interface MEMS sensor boards in DIL 24 socket to an SPC5 MCU discovery board like the AEK-MCU-C4MLIT1 hosting a SPC58EC80E5 Chorus family automotive MCU with 4 MB flash.

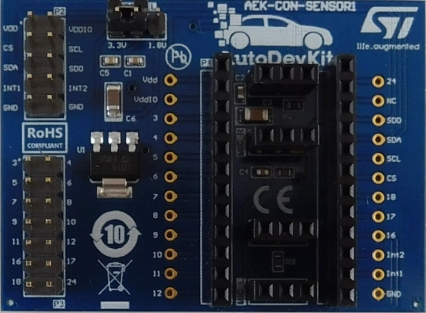

[AEK-CON-SENSOR1 IMAGE]
The connector board includes a 1.8 V LDO voltage regulator to supply MEMS boards.
Two male strip connectors allow connecting the AEK-MCU-C4MLIT1: the main one (5x2) is used for power supply, SPI interface and signal interrupt, whereas the second one (7x2) is used for optional GPIO connections depending on the plugged MEMS sensor board.
For the MEMS sensor board connection, three female strip connectors are used: the main one (12x2) hosts the MEMS sensors in DIL 24 socket, whereas the other two (3x2) host digital microphones.

All features
Connects the AEK-MCU-C4MLIT1 MCU discovery board to the MEMS sensor boards in DIL 24 socket
Supports several sensors: digital microphones, 2D and 3D accelerometers, inclinometers
Hosts a 1.8 V LDO voltage regulator for MEMS board supply
Compact size: 56 mm x 41 mm
WEEE and RoHS compliant
Included in the AutoDevKit initiative
