Evaluation board based on STM32G0C1VE MCU

The STM32G0C1E-EV Evaluation board is a high-end development platform for the STM32G0C1VET6 microcontroller operating at up to 64 MHz frequency with internal 512-Kbyte Flash memory, 144-Kbyte RAM, USB 2.0 FS device and host, two CAN FDs, USB Type-C®, and Power Delivery controller interfaces (UCPD) compliant with USB Type-C® r1.2 and USB PD specification r3.0, three I2Cs, three SPIs, six USARTs, two low-power UARTs, one 12-bit ADC, two 12-bit DACs, three general-purpose comparators, seven general-purpose timers, two low-power timers, HDMI CEC, and SWD debugging support.

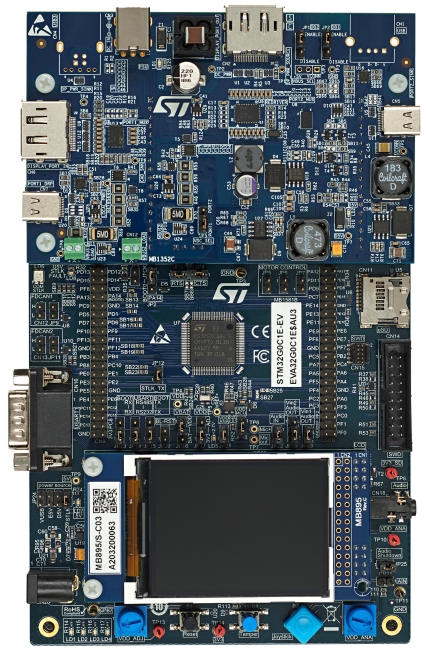

[STM32G0C1E-EV Board Photo]
The full range of hardware features on the STM32G0C1E-EV Evaluation board includes the mother board, the legacy peripheral daughterboard, and the USB-C® and Power Delivery daughterboard, which help to develop applications, and evaluate all peripherals, such as USB Type-C® connector with USB PD, motor control connector, CAN FD, USB 2.0 FS, RS-232, RS-485, audio DAC, microphone ADC, TFT LCD, IrDA, IR LED, IR receiver, LDR, microSD™ card, CEC on two HDMI connectors, Smartcard slot, RF EEPROM, and temperature sensor.
The board integrates an ST-LINK/V2-1 as an embedded in-circuit debugger and programmer for the STM32 MCU.
The daughterboard and extension connectors provide an easy way to connect a daughterboard or wrapping board for the user’s specific application.
The USB-C® and Power Delivery daughterboard features two independent USB-C® ports controlled by STM32G0. USB-C® port 1 is dual role power (DRP) and can provide up to 45 W of power. USB-C® port 2 is sink only. Both support the USB PD protocol and the alternate mode functionality.
Application firmware examples are provided to evaluate USB-C® technology through various use cases.

All features
Mother board
STM32G0C1VET6 Arm® Cortex®-M0+ core-based microcontroller with 512 Kbytes of Flash memory and 144 Kbytes of RAM in LQFP100 package
MCU voltage choice fixed at 3.3 V or adjustable from 1.65 V to 3.5 V
I2C compatible serial interface
RTC with backup battery
8-Gbyte or more SPI interface microSD™ card
Potentiometer
4 color user LEDs and one LED as MCU low-power alarm
Reset, Tamper, and User buttons
4-direction joystick with selection button
Board connectors:
5 V power jack
RS-232 and RS485 communications
CAN FD
Stereo audio jack including analog microphone input
microSD™ card
Extension I2C connector
Motor-control connector
Daughterboard connectors for legacy peripheral daughterboard or USB-C® and Power Delivery daughterboard
Extension connectors for daughterboard or wire-wrap board
Flexible power-supply options:
5 V power jack
ST-LINK/V2-1 USB connector
Daughterboard
On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port
Comprehensive free software libraries and examples available with the STM32CubeG0 MCU Package
Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
Legacy peripheral daughterboard
IrDA transceiver
IR LED and IR receiver
Light-dependent resistor (LDR)
Temperature Sensor
Board connectors:
Two HDMI connectors with DDC and CEC
Smartcard slot
USB-C® and Power Delivery daughterboard
Muliplexor for first generation USB 3.1 Type-B receptacle / DisplayPort input and USB Type-C® port 1 output
Multiplexor for USB Type-C® port 2 input and DisplayPort output / USB 2.0 Type-A receptacle
VCONN on USB Type-C® port 1
USB PD on USB Type-C® port 1
Board connectors:
USB Type-C® port 1 DRP (dual-role port) and USB 2.0 FS data
USB Type-C® port 2 sink
DisplayPort input
DisplayPort output
First generation USB 3.1 Type-B receptacle, not installed by default
USB 2.0 Type-A receptacle, not installed by default
19 V power jack for USB PD
