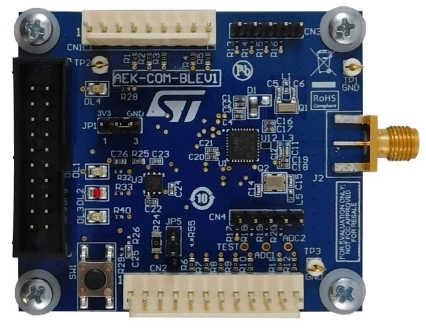

Bluetooth communication board based on BlueNRG-1

AEK-COM-BLEV1

Overview

The AEK-COM-BLEV1 evaluation board is based on the BlueNRG-1 low power Bluetooth^® smart system on chip, compliant with the Bluetooth^® specification.

The evaluation board can be connected to a microcontroller via a 12-pin or alternative 9-pin male connector for SPI, serial interface or I²C communication.
The BlueNRG-1 device is supplied with the network processor software loaded and ready to process Bluetooth commands. The software image (DTM_UART.hex) is available in the BlueNRG design kit.
The STSW-AEKBLE firmware provides a straightforward demonstration of the AEK-COM-BLEV1 board functionality used in conjunction with the AEK-MCU-C4MLIT1 evaluation board with microcontroller.

Main features

Based on the BlueNRG-1 Bluetooth low energy system on chip
Associated STSW-BLUENRG-DK (BlueNRG-1 development kit software package) including firmware and documentation
Up to +8 dBm available output power (at antenna connector)
Excellent receiver sensitivity (-88 dBm)
Very low power consumption: 7.7 mA RX and 8.2 mA TX at +0 dBm
Bluetooth^® low energy compliant: supports master, slave and simultaneous master-and-slave roles
New integrated balun BALF-NRG-02D3 which integrates a matching network and harmonics filter

3 user LEDs
JTAG debug connector
Pre-programmed as network processor
Board size: 60 x 40 mm.
Part of the AutoDevKit™ initiative
RoHS and WEEE compliant
