| Input voltage | AC 90 to 264V |
|---|---|
| The output voltage | DC 12V |
| Output Power | 500W |
| Circuit topology | Continuous current type PFC, LLC (half bridge) + synchronous rectification, output Oring circuit |

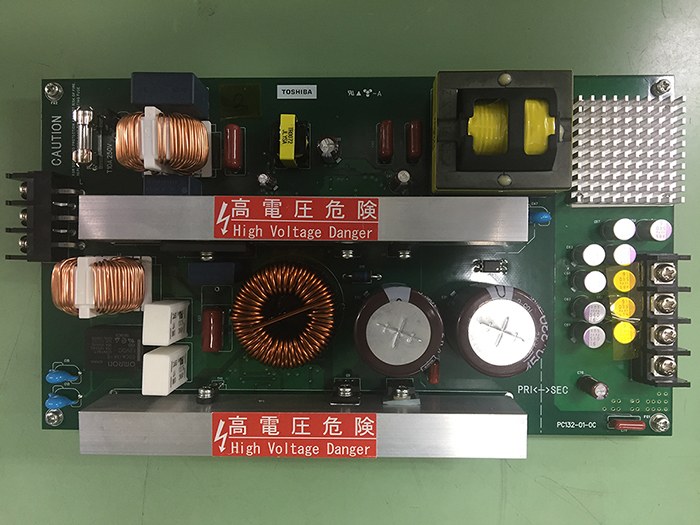

1U rack size and high-efficiency power supply
Total efficiency: 93% (Vin = 230V at 100% load)
Form factor: 240mm × 135mm × 40mm
Suitable power devices (MOSFETs and SiC diodes) and optocouplers are available

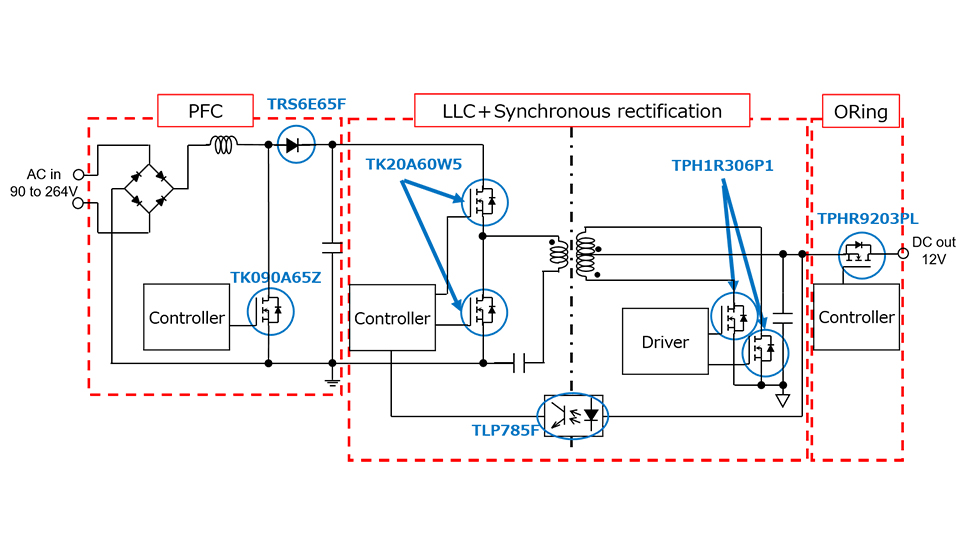

Blockdiagram
