Summary and Features
-Low cost
- Combines PFC and PSR controlled CC into a single stage
-Single sided PCB
-Low component count
-Low profile (less than 10 mm component height)
- Highly energy efficient
-≥86% at 110 VAC
- PF >0.98, THD <15% at 110 VAC
-Surge resistant
-Meets 1 kV differential surge protection
-Meest 500 V surge without MOV
-IEC 61000-4-5 ring wave
- Integrated protection and reliability features
-Output open circuit / output short-circuit protected with auto-recovery
-Line input overvoltage shutdown extends voltage withstand during line faults
-Auto-recovering thermal shutdown with large hysteresis protects both components and
printed circuit board

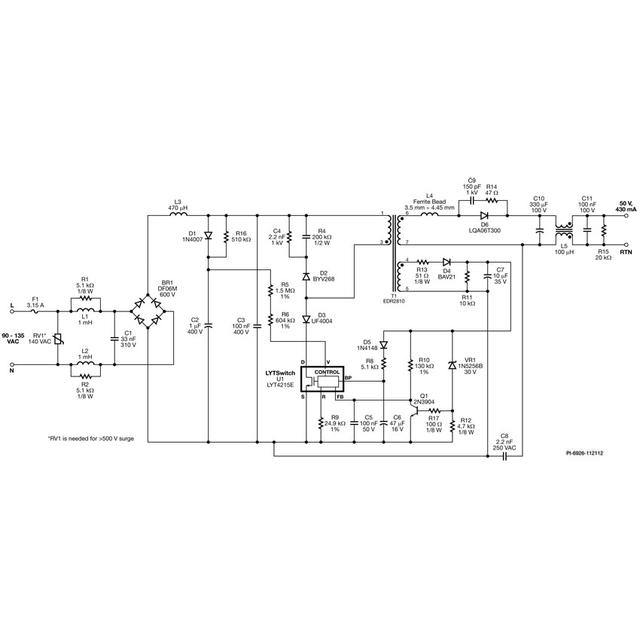

Blockdiagram
