STM32 Nucleo display expansion board with Zio connector

X-NUCLEO-GFX02Z1

Overview

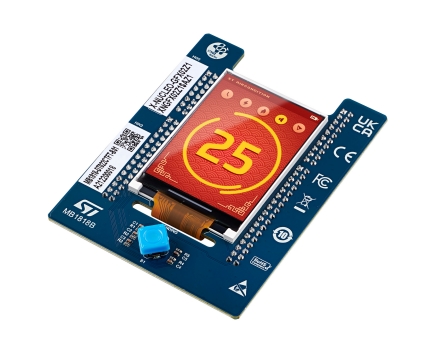

The X-NUCLEO-GFX02Z1 expansion board adds graphical user interface (GUI) functionality to the STM32 Nucleo-144 board.
[board
photo The expansion board also provides a joystick for GUI navigation.
X-NUCLEO-GFX02Z1 is equipped with Zio connector. It is compatible with NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H743ZI, NUCLEO-H723ZG, NUCLEO-H753ZI, NUCLEO-H745ZI-Q ,NUCLEO- Nucleo Nucleo -144 boards.

All features
2.2-inch 8-bit parallel interface QVGA TFT LCD
64-Mbit Q-SPI NOR Flash
joystick for easy menu navigation
Compatible with selected STM32 Nucleo-144 boards (uses Zio connector)
