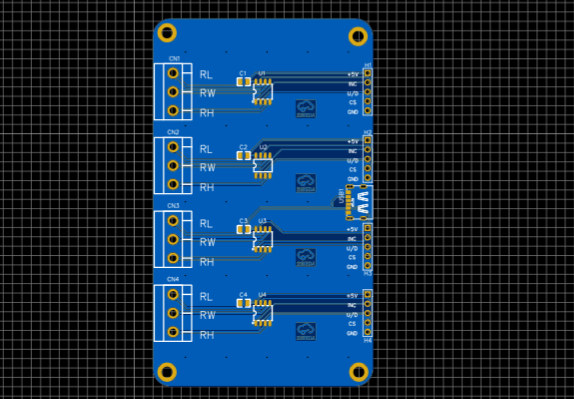

Digital potentiometer X9CXXX, package specification: SOIC-8 chip verification board

Overview

通过将引脚的引出能简单快捷的使用数字电位器
X9Cxxx是Intersil数控（XDCP）
电位器。该设备包含一个电阻
阵列，抽头开关，控制部分和非易失性
记忆。雨刮器的位置由
三线接口。
电位计由电阻阵列实现
由99个电阻元件和抽头开关组成
网络。在每个元素之间以及在任一端
是抽头端子可访问的分接点。的
刮水器元件的位置由CS控制，
U / D和INC输入。刮水器的位置可以是
存储在非易失性存储器中，然后调用
在随后的加电操作中。
该设备可用作三端电位计
或作为广泛使用的两端可变电阻器
各种应用程序包括：
- 控制
–参数调整
- 信号处理
