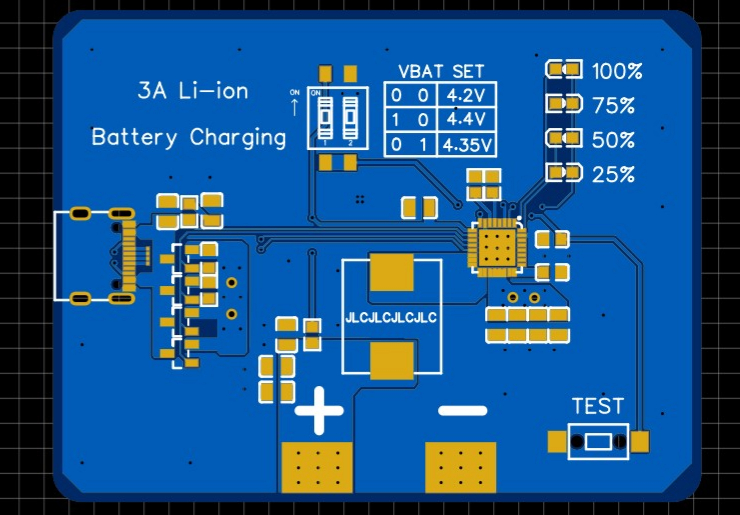

IP5310_3A lithium battery charging module

Overview

Using the lithium battery charging module made of IP5310, you can use the DIP switch to switch the lithium battery charging cut-off voltage (4.2V/4.35V/4.4V), and the maximum charging current can reach 3A. The Type-c interface has dual input/output characteristics, and the TYPE-C TO TYPE-C cable can be used to reverse charge the mobile phone. This module belongs to the low-voltage and high-current charging type. It is recommended to use a 5V-3A charger and charge with the original data cable to achieve the best effect. It is also compatible with 5V-2A and 5V-1A chargers.
