[Unverified] QC protocol decoy (pure hardware Mini version)

Write in front:

    There are also several decoys with similar circuits in the square. I just added a digital voltmeter, a power output switch, and changed the output mode of the power supply.

Features:

    1. 3-digit digital display voltage (precision adjustable)

    2. Support power output switch

    3. The power output uses a banana plug, which can be directly plugged into the crocodile clip cable of a multimeter/stabilized power supply.

    4. Welding nuts and double-plate sandwich design are used. The estimated height of the double plates is 10mm.

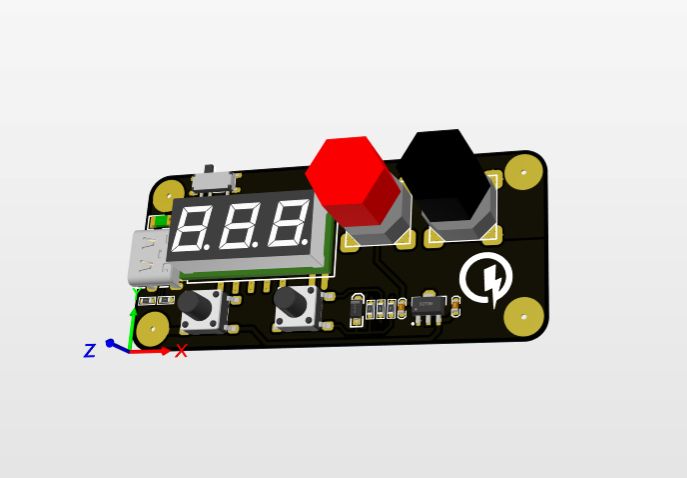

3D simulation diagram:

    Top layer of roof:

Top bottom layer:

Bottom top layer:

Bottom layer of base plate:

other:

      The communication and data sharing group number is 523314319, which provides step-by-step assembly instructions. The software/hardware/BOM will not be uploaded because it will be updated from time to time, and will be placed in the group file.

      The file is designed using AD, and there will be some deviations when opening it with Lichuang EDA. If you need to make a board, it is recommended to directly use the .PcbDoc file without (ASCII) field in the group file.

     This version has been boarded and will be verified as soon as possible when the board arrives. Interested students can join the group to wait for news.
