SW3516 4-channel fast charger

Overview

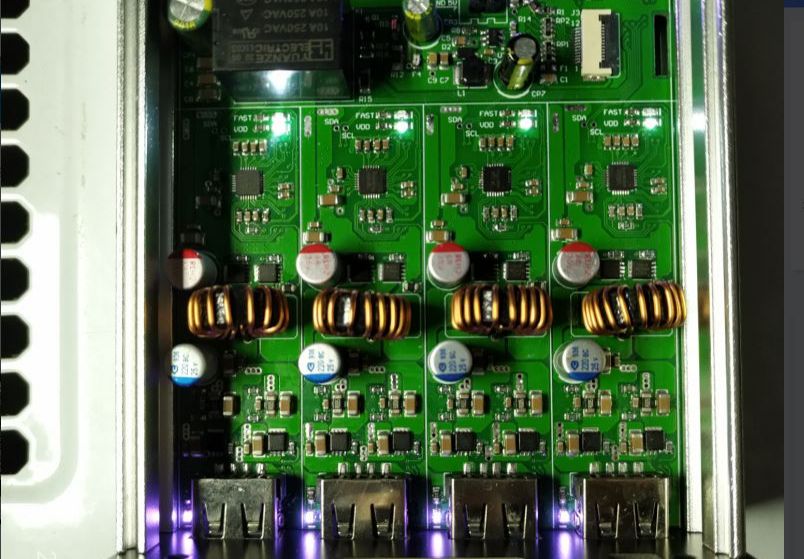

SW3516 4-channel fast charger.
Supports fast charging PD. Please see the manual support for details.
A 5V output is reserved, and each sw3516 has an I2C interface reserved to facilitate expansion of voltage and current information display.

The input supports PD input (decoy to 20V). DC5.5 and 5.08 plug-in terminals (12V-30V).

Note: The DC5.5 port is drawn upside down and requires flying wires.
