#The7thLiChuangElectricityContest#USB Charging Monitor

Overview

Project function introduction:

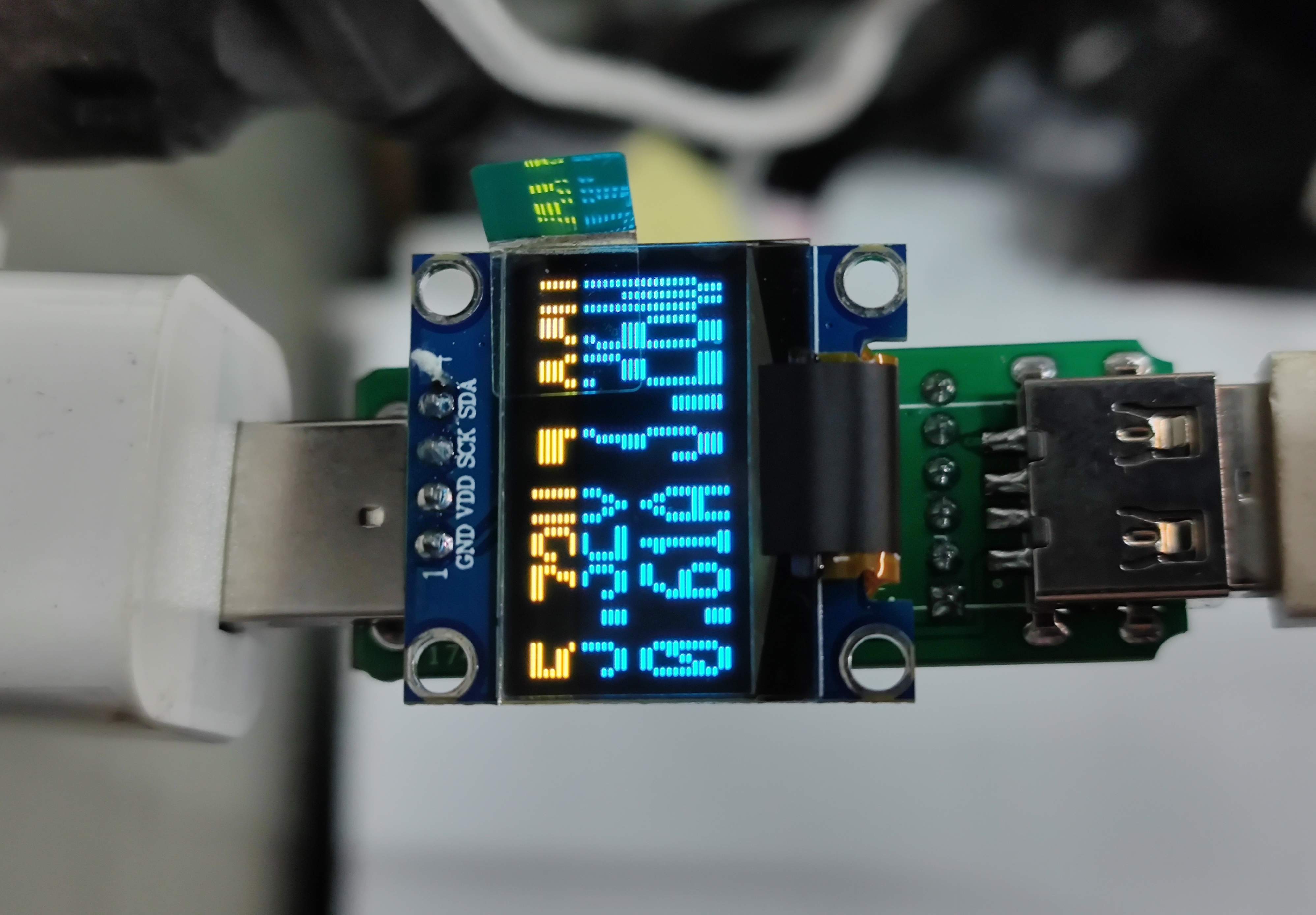

USB ammeter based on N32G430C8L7 chip + INA199 of National Technology, with an accuracy of 1%, can check the voltage, current and power of USB when it is working.

The hardware part
uses
the main control chip of National N32G430C8L7
INA199 ADC sampling
0.96-inch OLED display screen.

The software part
is developed by Keil and burned with

the competition LOGO for verification.
