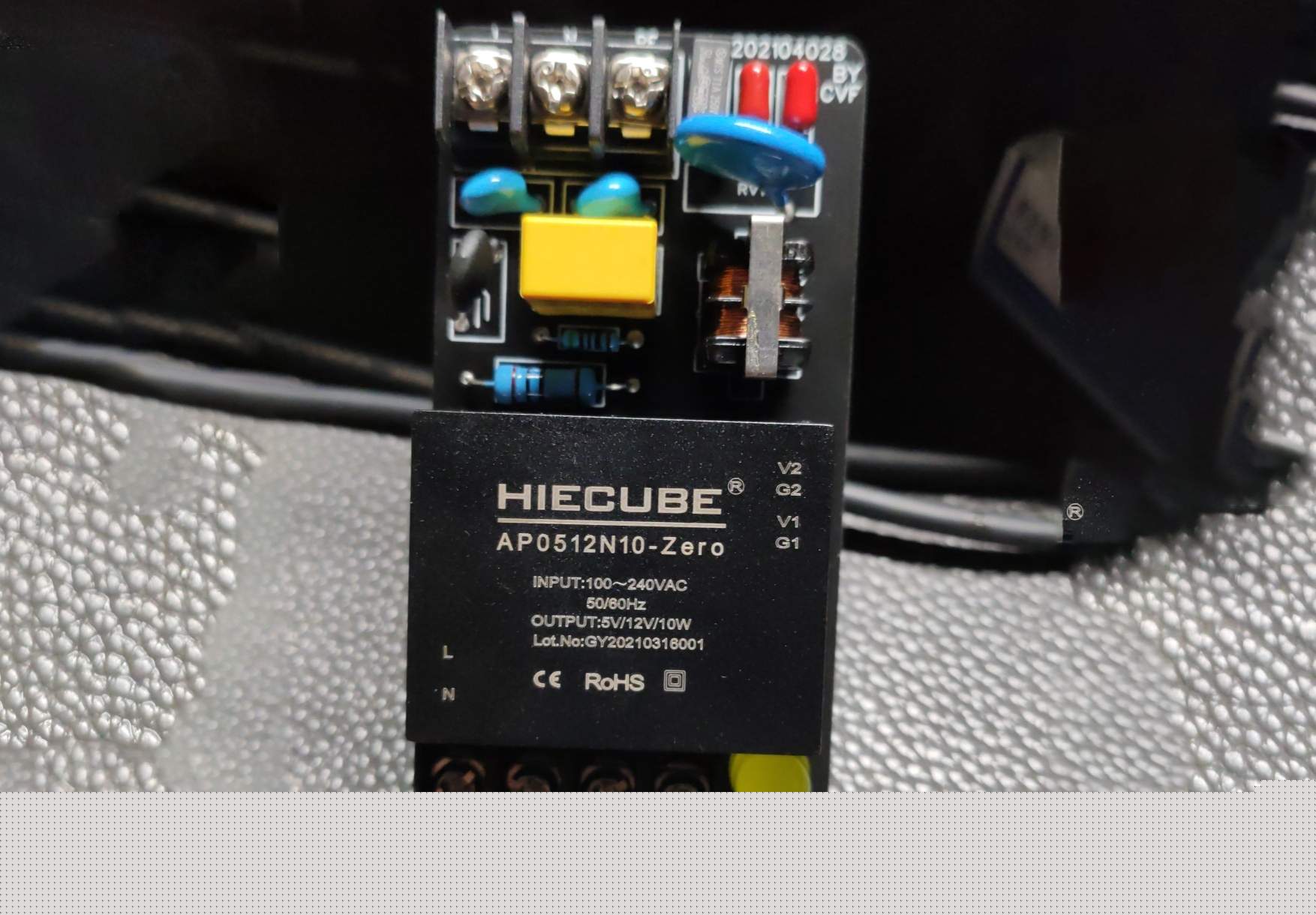

Because the power supply is 220V, but the microcontroller is 5V, the sensor requires 12V, and we don’t want to use a large switching power supply, so we made this module that can convert 220V AC into one channel of 5V and a channel of 12V. GND can be independent of each other. When a common GND is needed, the CGND pin short-circuit module can be used. It is a high-energy cube AP0512N10-ZERO with a power of 10W.
Most of the components inside come from the component packages that come with the module store, except for small resistors, LEDs and terminals.
Component package link: https://item.taobao.com/item.htm?spm=a1z09.2.0.0.7efd2e8dA1Rwa6&id=637380848303&_u=q22a3if4a39e
