USB_HUB_Type_C_Based_on_FE1.1S

Overview

Based on the modification of Lichuang Open Source FE1.1S four-way USB extender, original project link: https://oshwhub.com/LCEDA_Electronic-production/shi-yong-zhi-zuo02-ji-yufe1-1s-diusb-ji-xian -qi Reference video link https://www.bilibili.com/video/BV1bZ4y1T7m3/?spm_id_from=333.788.b_7265636f5f6c697374.5

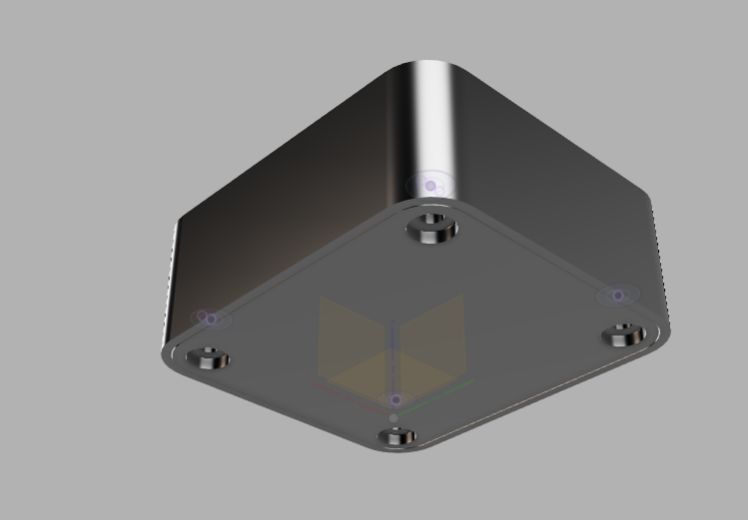

A 16pin USB-C interface is used, with a size of 42.8mmx50.3mm and a square shape. It uses 0805 and 0603 chip resistors and a 3mm direct plug-in LED. The shell file is in the attachment
