AstroBerry DIY Board V2

Project Description

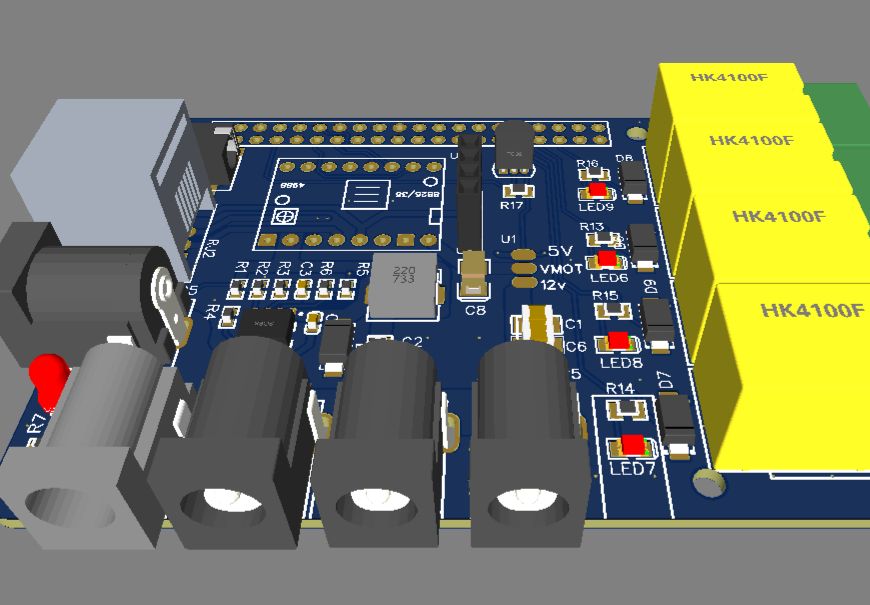

astroberry diy board all in with ESC four-way relay five-way DC12V

Project function introduction

Introduction and brief introduction to the relevant functions of the project, such as:

• Raspberry Pi 3B+ test can be used
•  Cooperate with Raspberry Pi Astroberry server, install kstars, and use AstroBerry's ESC plug-in astroberry focus and delay plug-in
•  With 5V step-down circuit
•  Five-way 12VDCDC socket
• 4-way relay control port
• Electric focusing part: RJ-6P socket, 4988/8825 driver board socket, the driving power supply pad is used to select 5V or 12V driver (note: it is actually related to the input power supply!)

The short circuit board has not been sampled and tested yet.

Project properties

Here you can fill in the completion progress bar of the project, select the check box according to the completed function, and also display the completion progress of the function.

• [x] Schematic design

• [x] PCB diagram design

• [x] PCB proofing

• [x] Welding test

• [x] Functional testing

• [x] Program testing

• • -
