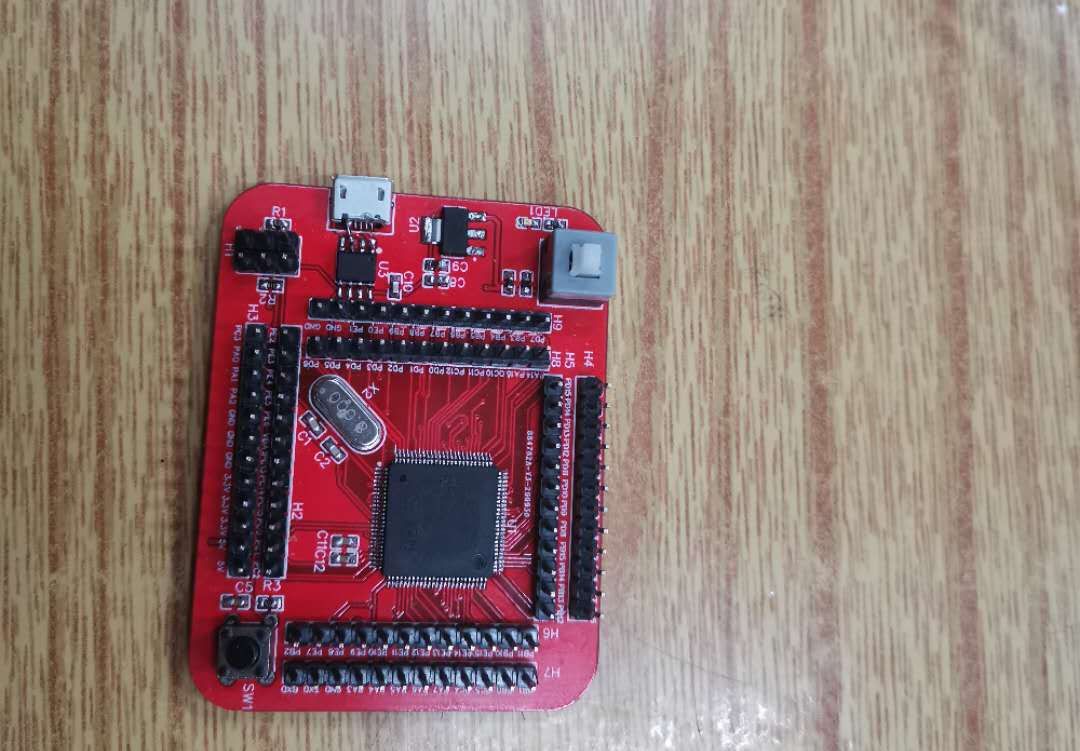

STM32F103 minimum system

Overview

test program

Download the program to the minimum system and let B0 connect to an LED test module. If the light turns on, there is no problem.

#include "stm32f10x.h"

#define LED_PORT GPIOB

#define LED_PORT_RCC RCC_APB2Periph_GPIOB

int main()

{

GPIO_InitTypeDef GPIO_InitStructure;

RCC_APB2PeriphClockCmd(LED_PORT_RCC,ENABLE);

GPIO_InitStructure.GPIO_Pin=LED_PIN;

GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP;

GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;

GPIO_Init(LED_PORT,&GPIO_InitStructure);

GPIO_SetBits(LED_PORT,LED_PIN);

while(1)

{

GPIO_ResetBits(LED_PORT,GPIO_Pin_0);

}
