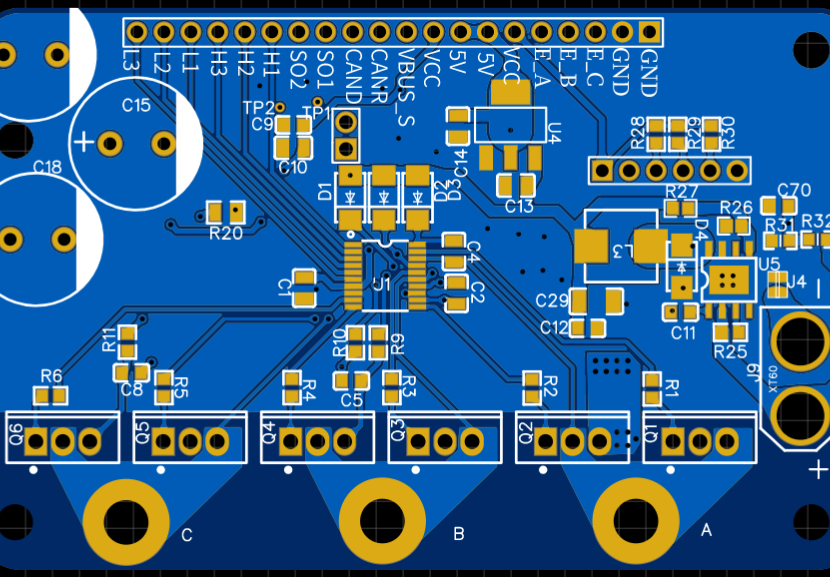

DC brushless driver board suitable for FOC algorithm development. It has a high-power brushless driver circuit, two differential current amplifier circuits, ABZ encoder signal pull-up, CAN communication module, and 5V output. The signal interface is drawn out and developed using a microcontroller. Using FD6288 gate driver chip and STP100N6F7 NMOS, it supports high power output up to 48V 100A.
