newlandmark

sdvx pcb

Overview

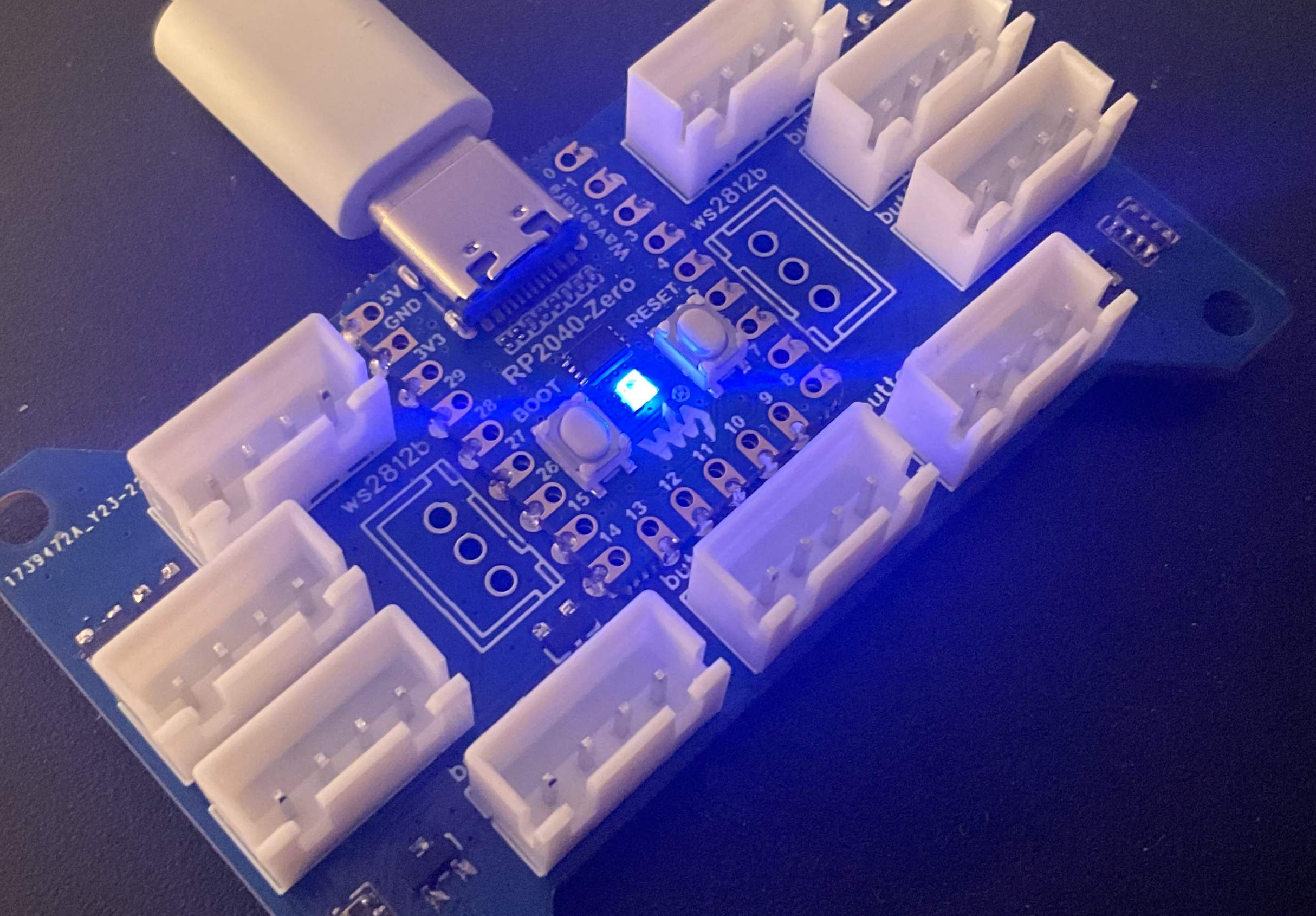

Supports seven buttons, two encoders, and two ws2812b light strips

You can choose to compile and modify the ino source program yourself, or directly drag the compiled uf2 into it for burning.

button 4 pin interface (as shown in the picture), from left to right are the positive pole of the lamp, the button, the button, and the negative pole of the lamp.

Encoder 4-pin interface (as shown in the picture), from left to right is 5V, A phase, B phase, GND
