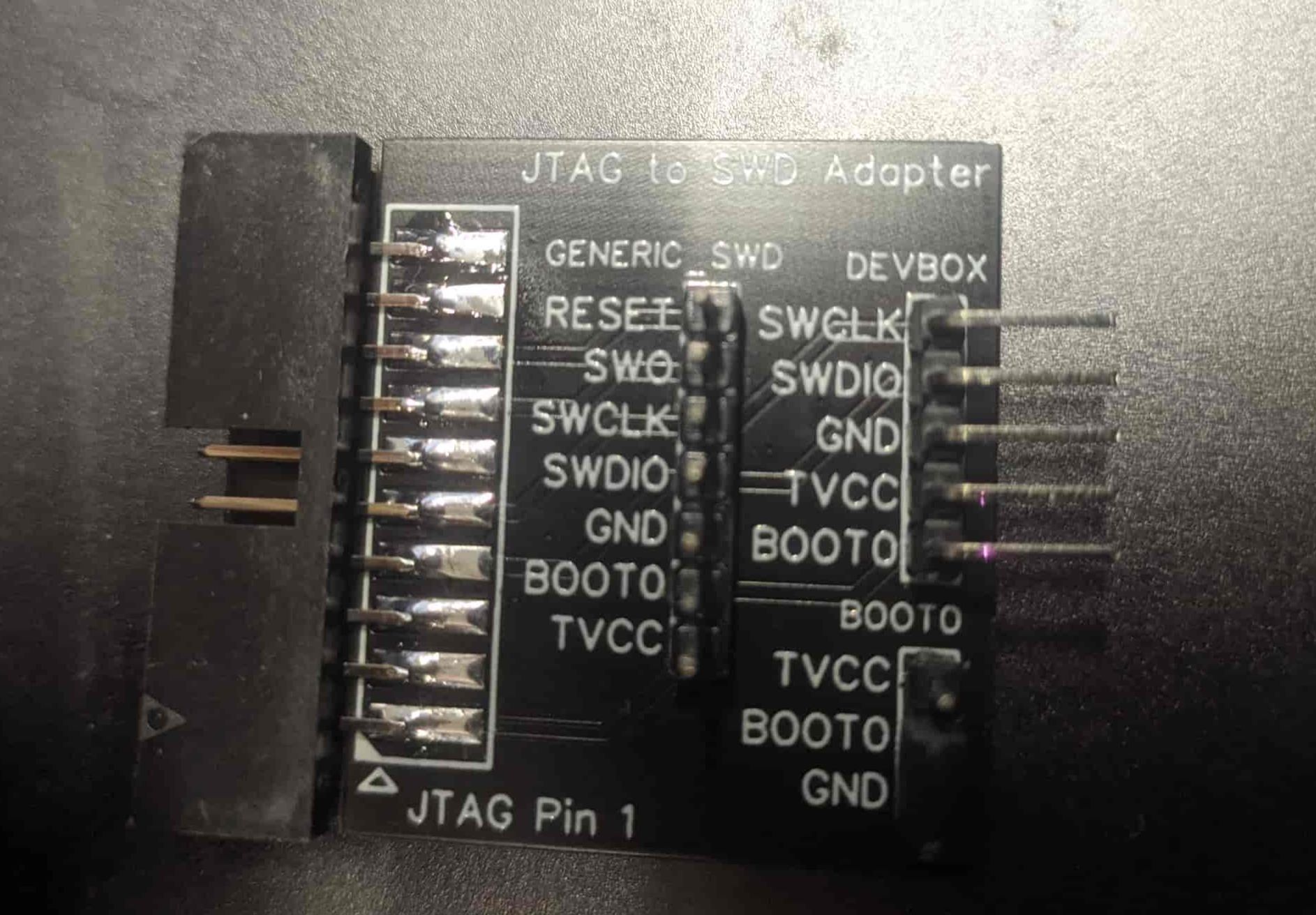

A usable JTAG to SWD board can be used directlyLinear (bushiLead to the pins required for SWD. Can work normally at SWD 4000 KHz standard rate. Just use the 20P simple cow to lie flat and weld it. It can be led out along the connection direction of the wire without the annoying 90-degree angle.
(This is a linear link)
(can work normally)
