HomeKit three-speed fan (ESP8266)

Overview

describe

Use ESP-12S as master controller
The software uses firmware open sourced on GitHub by Bilibili boss foggyhlw (verified)

After using it for a while, it is still a bit unstable:

Reconfigure connection accessories after each power outage

Sometimes accessories will appear unresponsive

The input is 5V, and the relay can withstand a maximum power of 2500W.

principle

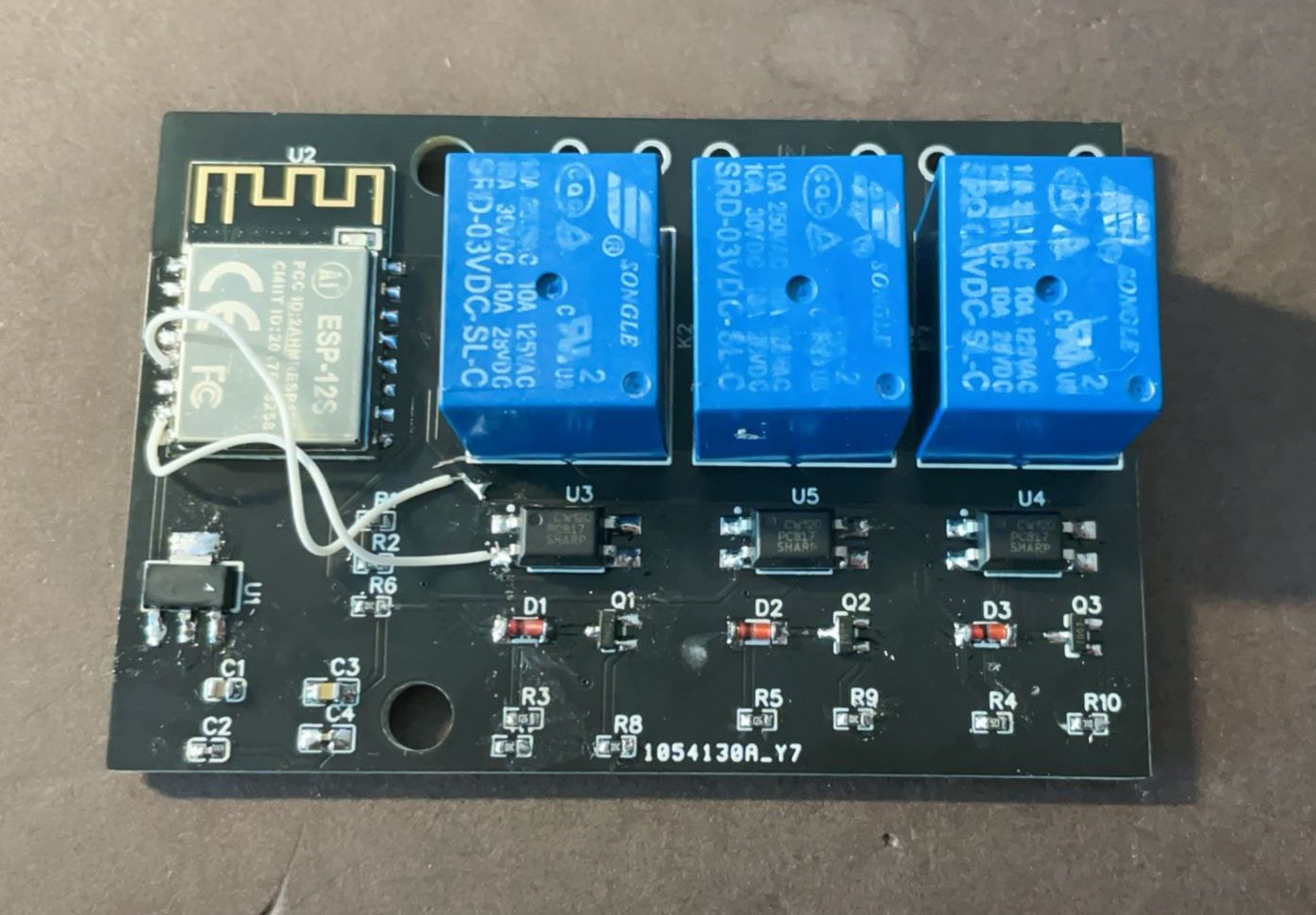

The 5V power input stabilizes the voltage to 3.3V output through TLV1117-3.3. ESP-12S controls three optocoupler switches to control the switch of 2n7002, thereby controlling the relay on and off.
