40% keyboard pcb

Overview

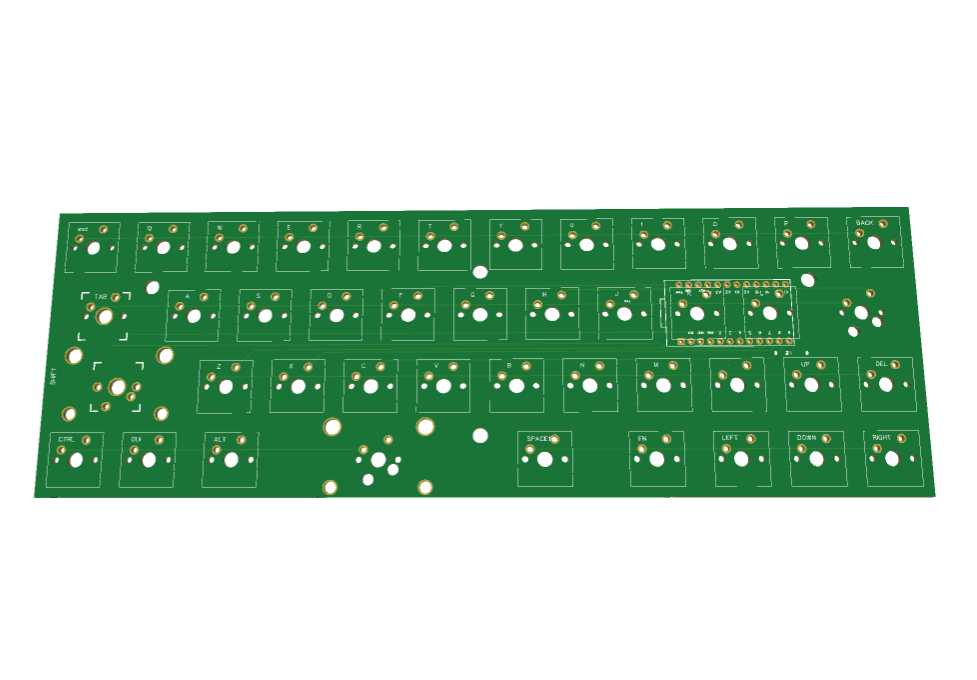

40% of the configuration is designed by myself. The whole keyboard has no lights. The axis is a five-pin axis and a PCB satellite axis. The main control used is 32u4 (pro micro).
