念慈菴

STM32F103VET6 development board

Overview

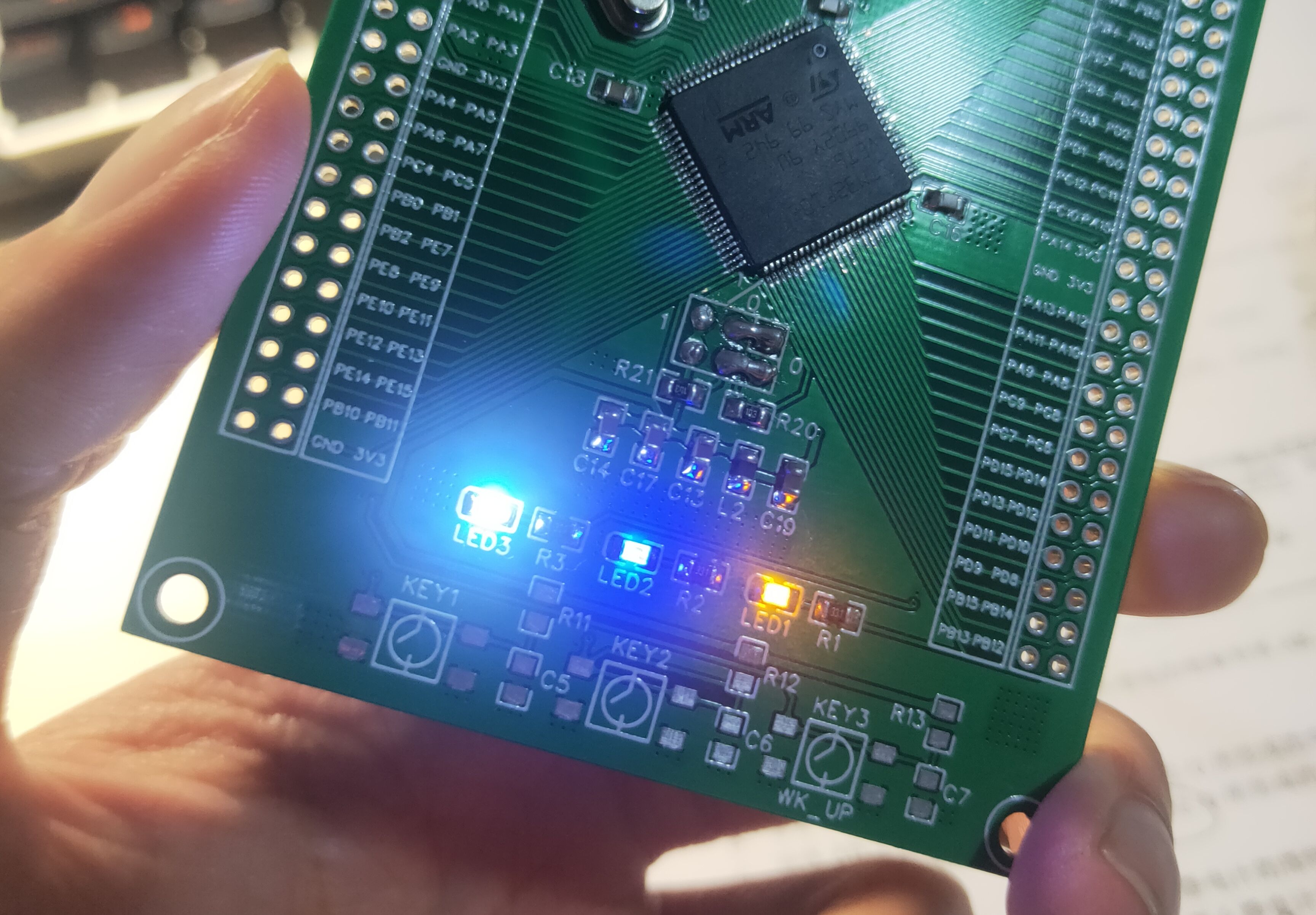

STM32 development board V3.4 1. The main control chip adopts STM32F103VET6. There are up to 512K bytes of flash memory and 64K bytes of SRAM on the chip, up to 80 GPIOs, and the chip speed can reach up to 72Mhz. 2. All available IO ports are drawn out for user convenience Development 3. Lead to CAN interface, use TJA1050 chip to send and receive, onboard 120Ω resistor, the circuit is more stable 4. Onboard USB-TTL circuit, adopt the widely used CH340G, and support one-click download 5. Support JTAG/SWD debugging program 6. Supports Type-C interface power supply 7. There are three buttons on the board and four LED lights have been tested and passed

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
