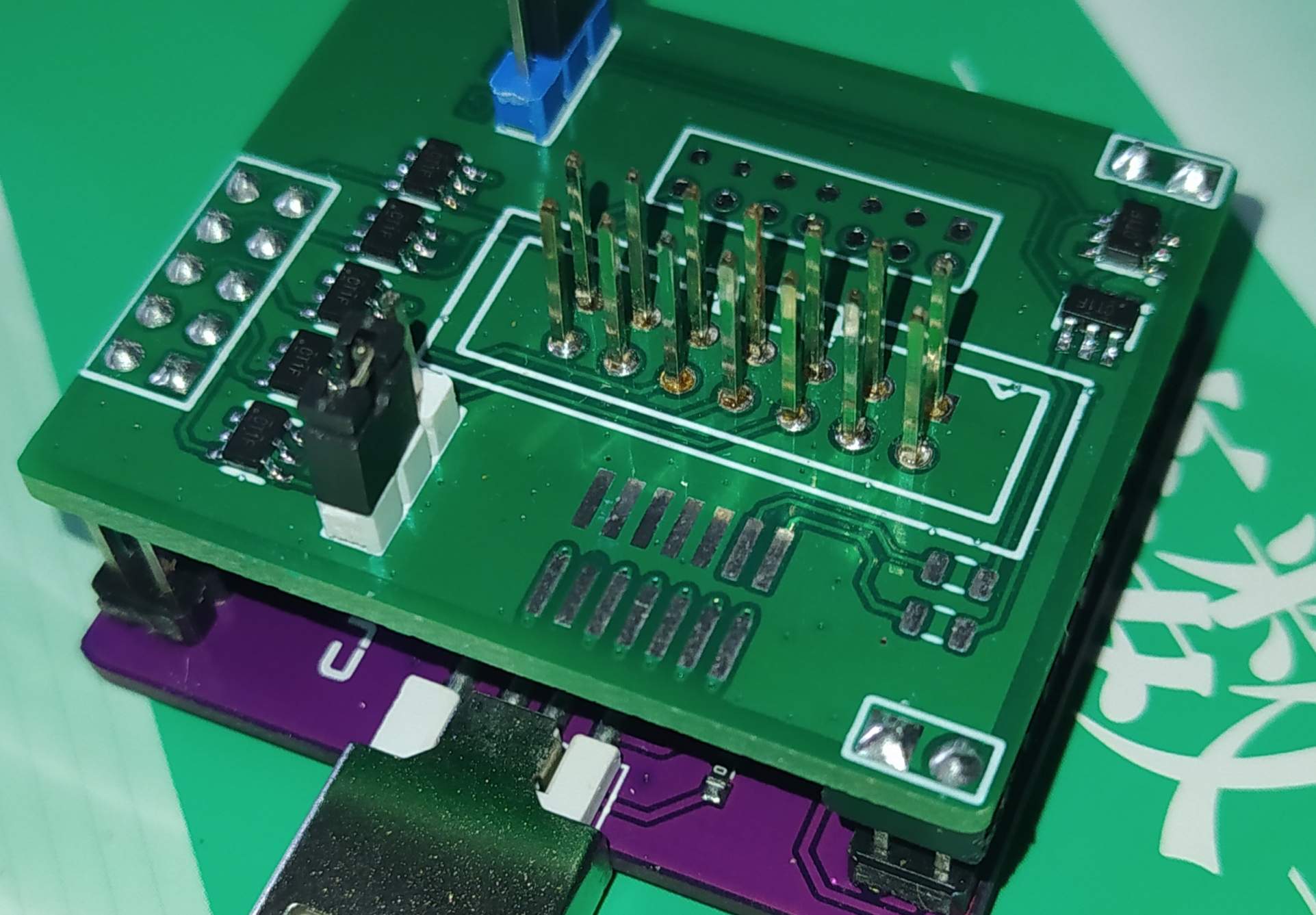

2232H level conversion board

Overview

jtag and uart level conversion board for cjmcu-2232HL module;

The interface is defined according to the 14pin of S9 slag;

Level conversion IC: 1T45;

Support Vref from 1.8V to 5V;

It has been verified that uart collects itself normally;

Design Files
