[Tuya Smart] Four-way remote control switch V2.0

Overview

Note: This project requires a Tuya Zigbee gateway to be used.

You can refer to: DIY multi-mode gateway-Tuya solution

If you need the Bluetooth version, please click here

engineering design:

Use 4 mute switches and add a toggle switch, which is very energy-saving;

Tuya ZS3L module supports low power consumption;

The network distribution indicator light and the button status indicator light are combined.

Project photos:

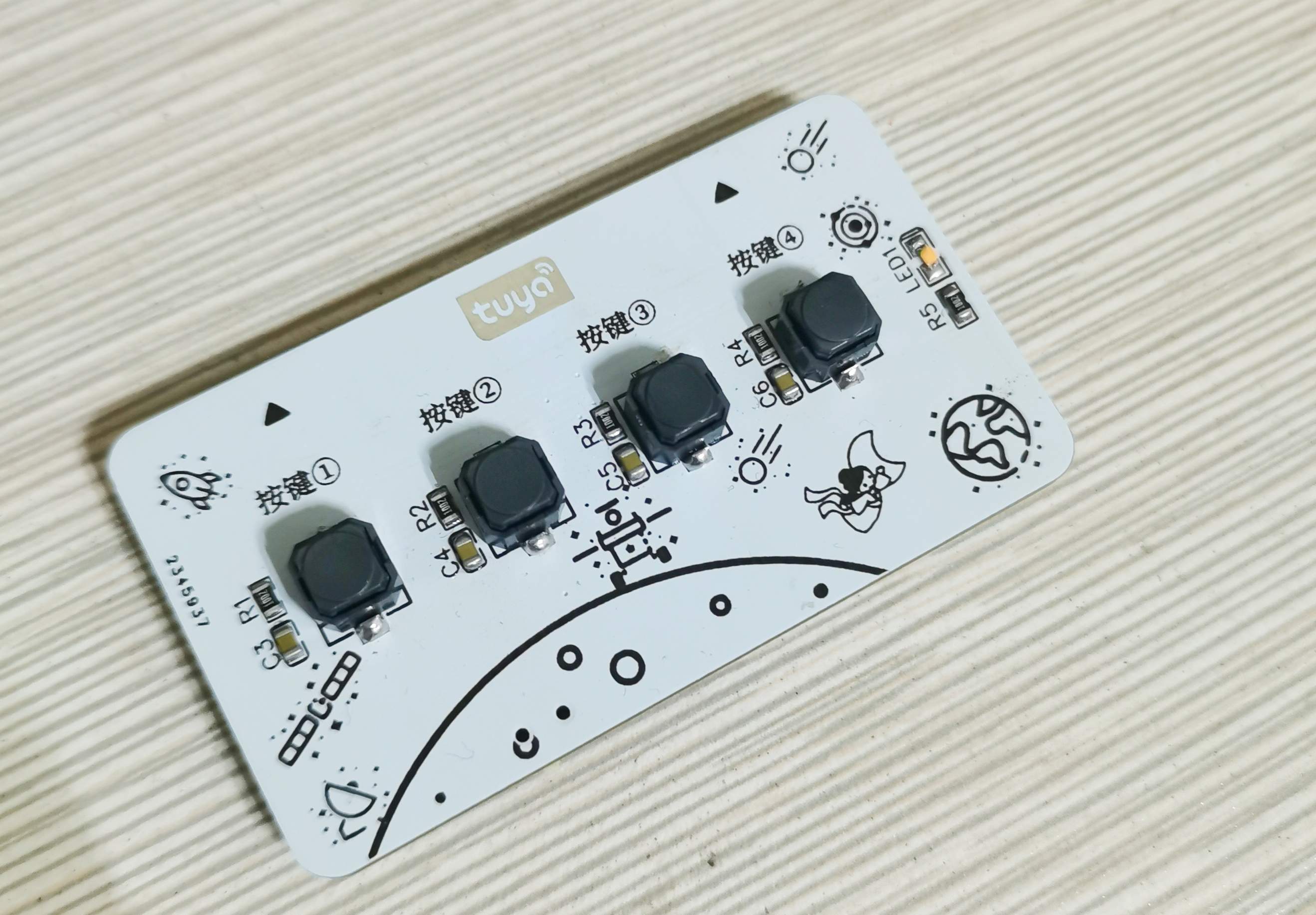

front:

back:

APP side:
