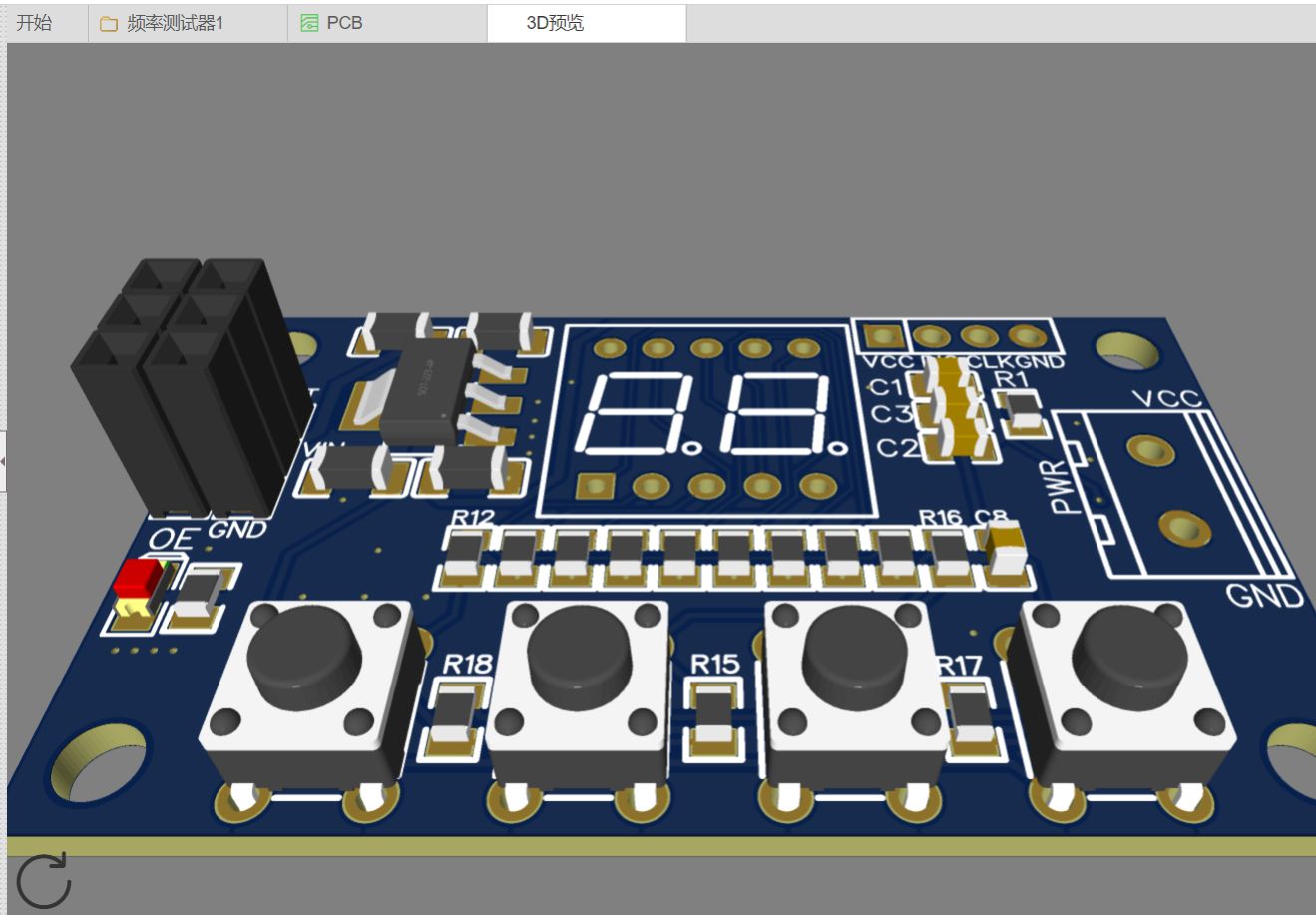

The electronic counter consists of input channel, time base unit, main door, control unit, counting and display unit. The input channel consists of an input circuit for counting pulse signals and a gate time signal path. The time base unit is mainly composed of a crystal oscillator, frequency division and frequency multiplication circuits, and can generate a longer gate signal and a shorter time scale signal.
