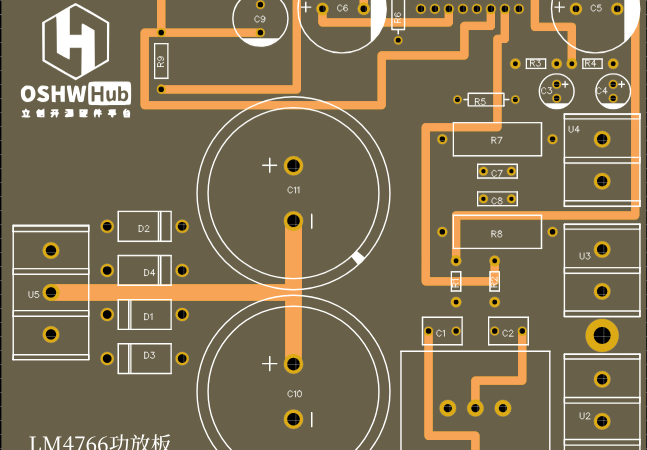

The power amplifier board integrates a rectifier and filter circuit, which can reach an output power of 40 watts*2 under an 8 ohm load. It supports positive and negative 10 to 30 volt power supply. It is recommended to use a transformer of more than 100W. There are interface definitions at the bottom of the power amplifier board.
